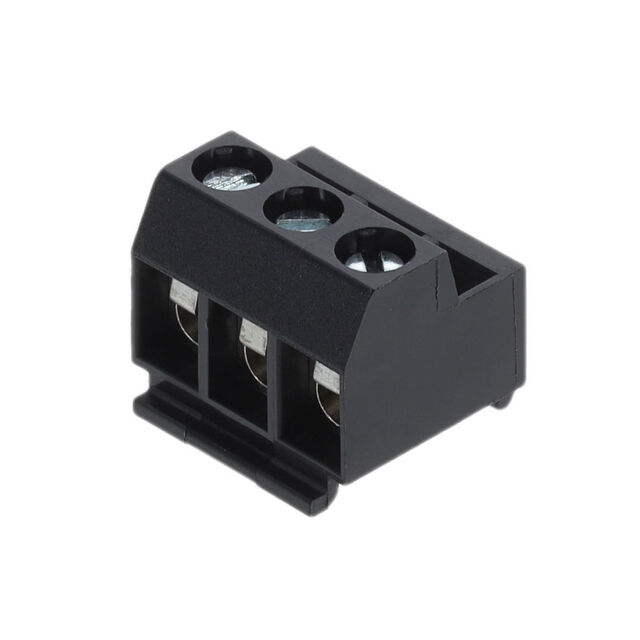

950-NLFL-DS/03

Active

WECO Electrical Connectors Inc.

CONNECTOR; PLUG; 3POLE; 26 TO 14

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

CONNECTOR; PLUG; 3POLE; 26 TO 14

Technical Specifications

Parameters and characteristics for this part

Specification	950-NLFL-DS/03

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - UL	10 A
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	3
Screw Size	M2.6
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug for Unshrouded Header
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length	6 mm

CONNECTOR; PLUG; 3POLE; 26 TO 14

Part	Number of Levels	Positions Per Level	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Contact Mating Finish	Voltage - UL	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Housing Material	Current - UL	Wire Strip Length	Mounting Type	Wire Gauge or Range - mm²	Screw Size	Termination Style	Contact Material	Pitch [x]	Pitch [x]	Type	Plug Wire Entry
WECO Electrical Connectors Inc. 950-NLFL-DS/03	1	3	UL94 V-0	-40 °C	105 ░C	0.4 Nm	3.5 Lb-In	Nickel	300 V	Black	26 AWG	14 AWG	Polyamide (PA), Nylon	10 A	6 mm	Panel Mount, Snap-In	1.5 mm²	M2.6	Screw - Leaf Spring, Wire Guard	Copper Alloy	5 mm	0.197 in	Plug for Unshrouded Header	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Panel Mount, Snap-In
