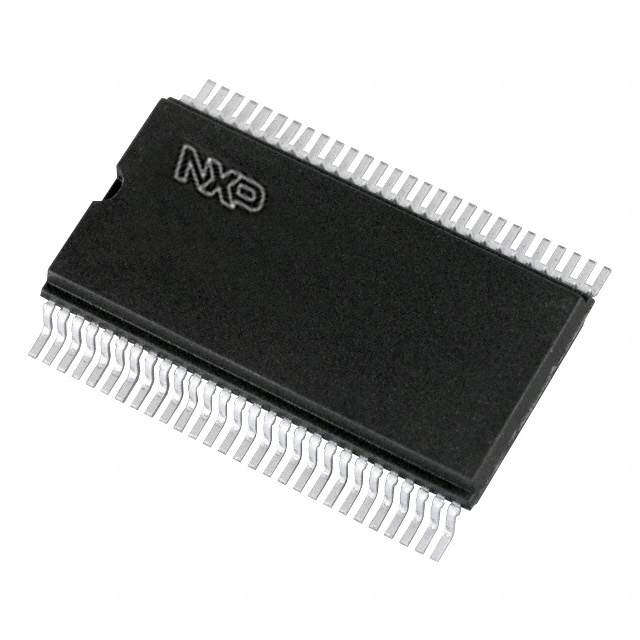

TEA6825T/V1,118

Obsolete

NXP USA Inc.

RF RECEIVER AM/FM 56VSOP

Search across all available documentation for this part.

Obsolete

NXP USA Inc.

RF RECEIVER AM/FM 56VSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TEA6825T/V1,118

Antenna Connector	PCB, Surface Mount
Applications	In Car Entertainment (ICE) Car Radio
Current - Receiving	39 mA
Data Interface	Surface Mount, PCB
Frequency	AM, WB, FM
Modulation or Protocol	FM, AM
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	56-BSOP (0.435", 11.05mm Width)
Supplier Device Package	56-VSO
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

RF RECEIVER AM/FM 56VSOP

Part	Current - Receiving	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Modulation or Protocol	Frequency	Data Interface	Antenna Connector	Supplier Device Package	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]
NXP USA Inc. TEA6825T/V1,118	39 mA	56-BSOP (0.435", 11.05mm Width)	Surface Mount	85 °C	-40 °C	AM, FM	AM, FM, WB	PCB, Surface Mount	PCB, Surface Mount	56-VSO	In Car Entertainment (ICE) Car Radio	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- RF Receiver AM, FM AM, FM, WB PCB, Surface Mount 56-VSO
