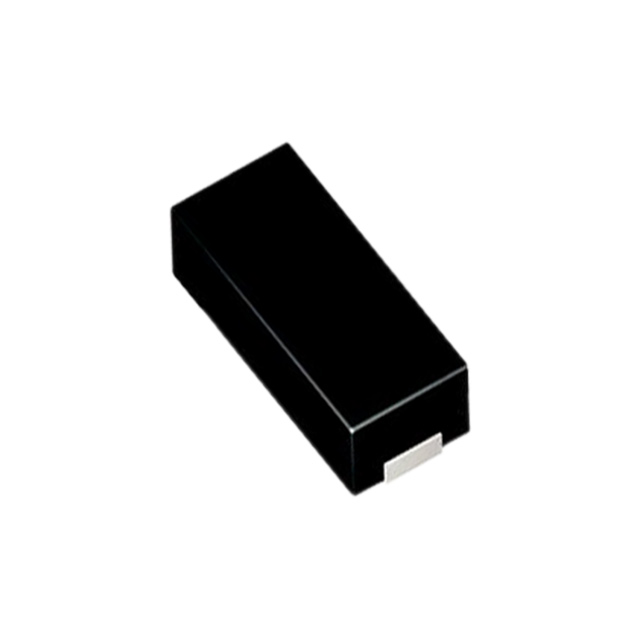

SM-5R5000FE6
ObsoleteVishay Dale
RES 0.5 OHM 1% 4W
SM-5R5000FE6
ObsoleteVishay Dale
RES 0.5 OHM 1% 4W
Description
General part information
SM-5R5000FE6
500 mOhms ±1% 4W Chip Resistor 8230 J-Lead Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | SM-5R5000FE6 |
|---|---|
| Composition | Wirewound |
| Height - Seated (Max) | 0.305 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8230 J-Lead |
| Package Name | SM-5 |
| Power (Watts) | 4 W |
| Resistance | 0.5 Ohm |
| Size / Dimension Length | 0.82 in |
| Size / Dimension Width | 0.295 in |
| Tolerance | 1 % |
