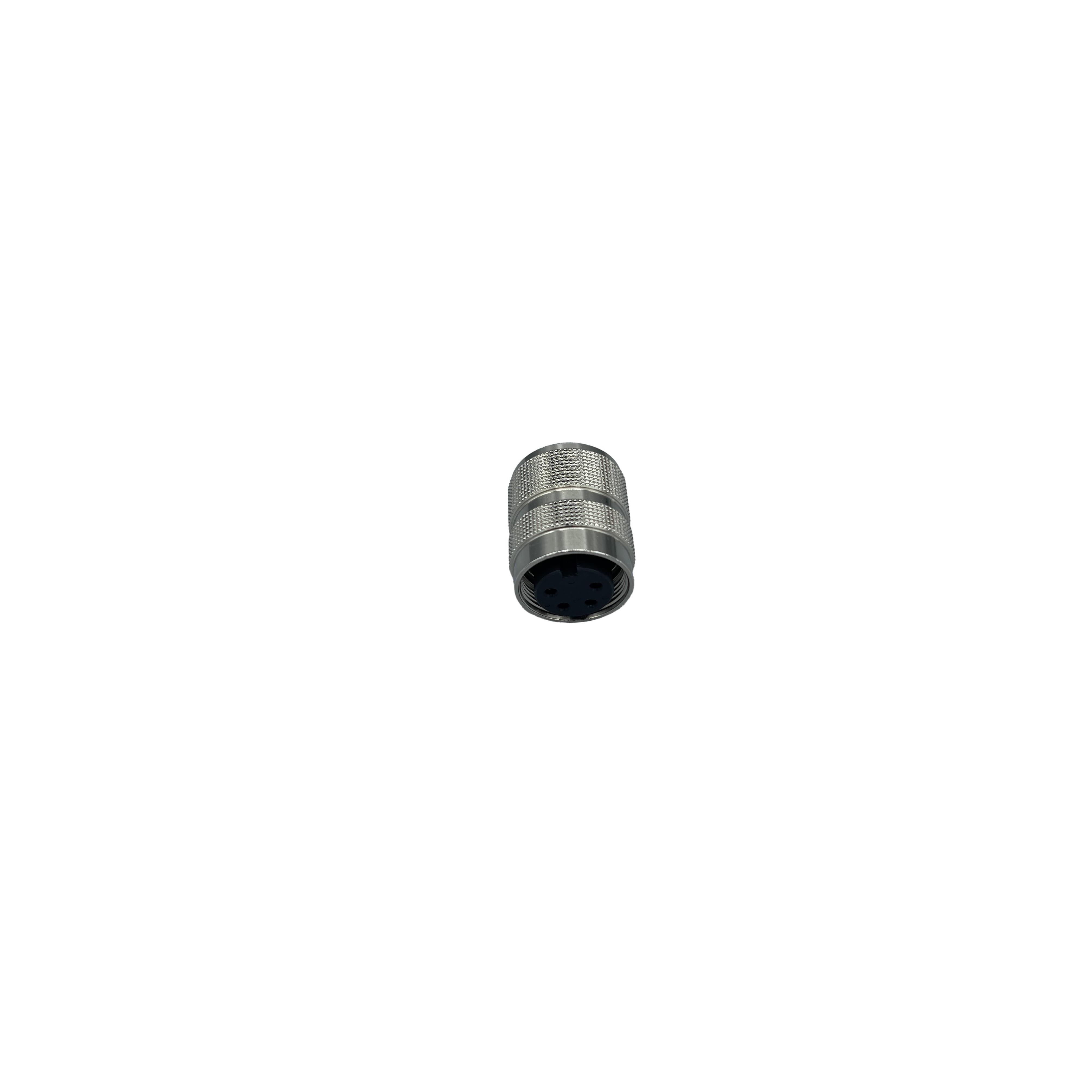

878-004-203RLS1
ActiveNorComp Inc.
CIRCULAR CONNECTOR, M16 878 SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET, THREADED
878-004-203RLS1
ActiveNorComp Inc.
CIRCULAR CONNECTOR, M16 878 SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET, THREADED
Description
General part information
878-004-203RLS1
4 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 878-004-203RLS1 |
|---|---|
| Cable Opening | 0.709 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 7 A |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M16-4 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
