Description
General part information
DG4202

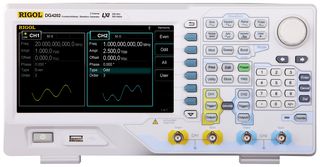

DG4202 is a DG4000 series, 2 channel, 200MHz bandwidth function/arbitrary waveform generator. It is a multi-functional generator that integrates many functions into one, including function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog/ digital modulator and frequency counter. With the Direct Digital Synthesizer (DDS) technology, the DG4000 series provides stable, precise, pure and low distortion signals. The high-definition wide screen display, friendly interface design and key operation layout bring users with extraordinary experience.
Technical Specifications
Parameters and characteristics for this part
| Specification | DG4202 |
|---|---|
| Display Type | TFT - Color LCD |
| Frequency - Max | 200 MHz |
| Function | Sweep, Arbitrary |
| Number of Channels | 2 |
| Signal Types | Pulse, Ramp, Square, Sine, Harmonic, Noise |
| Supply Voltage (Max) | 240 VAC |
| Supply Voltage (Min) | 100 VAC |
| Type | Function Generator |
