A7MXB-1506G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AMP15B/AE15G/X
Deep-Dive with AI
Search across all available documentation for this part.
A7MXB-1506G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AMP15B/AE15G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7MXB-1506G | A7MXB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 15 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB15 | DB15, DB9, DB25, DB37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.77 | |
| 10 | $ 10.41 | |||
| 25 | $ 9.60 | |||
| 50 | $ 9.02 | |||
| 100 | $ 8.49 | |||
| 250 | $ 7.82 | |||
| 500 | $ 7.66 | |||
| 1000 | $ 7.66 | |||
A7MXB Series
CABLE D-SUB - AMP15B/AE15M/X
| Part | Color | Type | Contact Finish | 1st Connector | Length | Length | 2nd Connector | Shielding | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7MXB-1510M | Multiple, Ribbon | DB15 | Gold | Plug, Male Pins | 10 ft | 3.05 m | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7MXB-0910G | DB9 | Gold | Plug, Male Pins | 10 ft | 3.05 m | Individual Wire Leads | Unshielded | 9 | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MXB-2510M | Multiple, Ribbon | DB25 | Gold | Plug, Male Pins | 10 ft | 3.05 m | Individual Wire Leads | Unshielded | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MXB-1506M | Multiple, Ribbon | DB15 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7MXB-3706M | Multiple, Ribbon | DB37 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7MXB-0910M | Multiple, Ribbon | DB9 | Gold | Plug, Male Pins | 10 ft | 3.05 m | Individual Wire Leads | Unshielded | 9 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7MXB-3706G | DB37 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MXB-2506M | Multiple, Ribbon | DB25 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MXB-2506G | DB25 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7MXB-1506G | DB15 | Gold | Plug, Male Pins | 6 ft | 1.83 m | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin |
Description
General part information
A7MXB Series

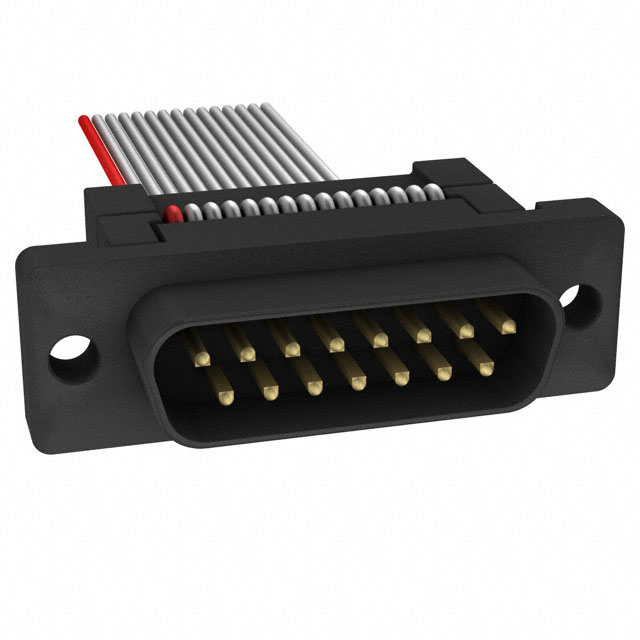

D-Sub Cable Assembly DB15 Gray, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
