Description
General part information

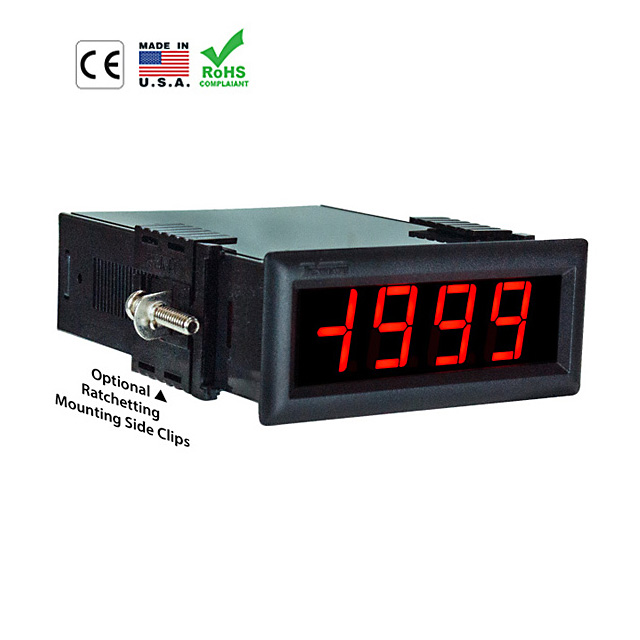

SM35DCV2VDI
Process Meter, Voltmeter LED Display Panel Mount - Bezel
Technical Specifications
Parameters and characteristics for this part
| Specification | SM35DCV2VDI |
|---|---|
| Display Characters - Height | 0.56 in |
| Display Type | LED |
| Features | Header Programmable |
| Ingress Protection | IP30 |
| Measuring Type | Voltage |
| Measuring Voltage Range (Maximum) | 2 VDC |
| Measuring Voltage Range (Minimum) | 0 V |
| Mounting Type | Panel Mount - Bezel |
| Number of Characters Per Row | 3.5 characters |
| Panel Cutout Length | 64.77 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 24.64 mm |
| Type | Process Meter, Voltmeter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
