YR1B453RCC

Active

TE Connectivity Passive Product

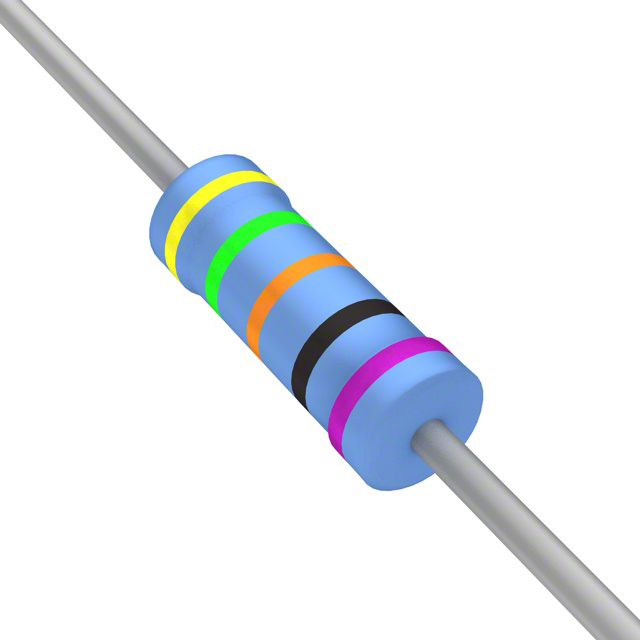

RES 453 OHM 0.1% 1/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1676914

YR1B453RCC

Active

TE Connectivity Passive Product

RES 453 OHM 0.1% 1/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet 1676914

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YR1B453RCC

Composition	Metal Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Package / Case	Axial
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	453 Ohms
Size / Dimension	6.3 mm, 2.3 mm
Size / Dimension [diameter]	0.091 "
Size / Dimension [z]	0.248 in
Supplier Device Package	Axial
Temperature Coefficient	15 ppm/°C
Tolerance	0.1 %

YR1B Series

...

Part	Resistance	Number of Terminations	Temperature Coefficient	Size / Dimension	Size / Dimension [z]	Size / Dimension [diameter]	Package / Case	Tolerance	Composition	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
TE Connectivity Passive Product YR1B243KCC	243 kOhms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B1K02CC	1.02 kOhms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B11R3CC	11.3 Ohms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B150KCC	150000 Ohms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B26R7CC	26.7 Ohms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B464KCC		2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B15K8CC	15.8 kOhms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B22K1CC	22.1 kOhms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B41R2CC	41.2 Ohms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial
TE Connectivity Passive Product YR1B887RCC	887 Ohms	2	15 ppm/°C	2.3 mm 6.3 mm	0.248 in	0.091 "	Axial	0.1 %	Metal Film	0.25 W	250 mW	155 °C	-65 ░C	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2000	$ 0.20

Description

General part information

YR1B Series

453 Ohms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Metal Film

Documents

Technical documentation and resources

Datasheet

1676914

Datasheet
