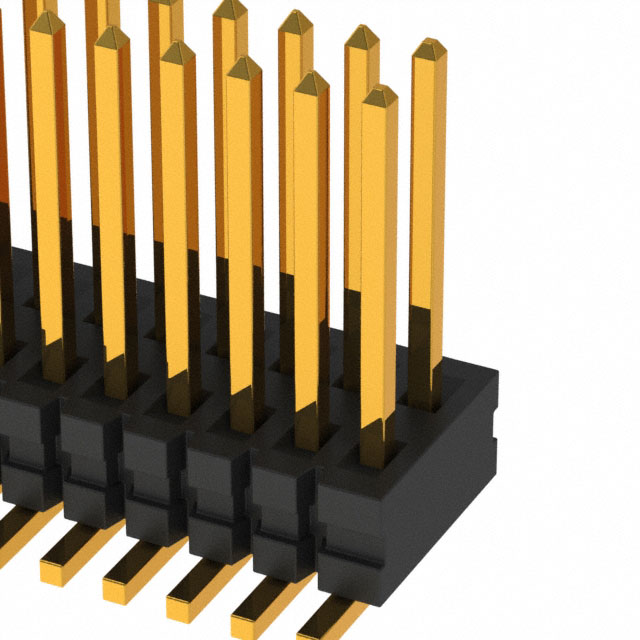

FTE-108-02-G-DV

Active

Samtec Inc.

CONN HEADER SMD 16POS 0.8MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTE-108-02-G-DV

Active

Samtec Inc.

CONN HEADER SMD 16POS 0.8MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTE-108-02-G-DV

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	4.45 mm
Contact Length - Mating	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.055 in
Insulation Height [z]	1.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating	1.2 mm
Row Spacing - Mating	0.047 in
Shrouding	Unshrouded
Termination	Solder

FTE-108 Series

Part	Insulation Color	Insulation Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Insulation Height	Insulation Height	Contact Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Type	Number of Rows	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]	Features
Samtec Inc. FTE-108-03-G-DH	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull	3.05 mm	0.12 in	Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount Right Angle	3.05 mm	0.12 in	Header
Samtec Inc. FTE-108-01-G-DV-A-P	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount			Header	1.9 mm	0.075 in	0.055 in	1.4 mm	Board Guide Pick and Place
Samtec Inc. FTE-108-01-G-DV-ES-P-TR	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount			Header	1.9 mm	0.075 in	0.055 in	1.4 mm	End Shrouds Pick and Place
Samtec Inc. FTE-108-01-G-DV-ES-A-P	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount			Header	1.9 mm	0.075 in	0.055 in	1.4 mm
Samtec Inc. FTE-108-02-G-DV-P-TR	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount	4.45 mm	0.175 in	Header			0.055 in	1.4 mm	Pick and Place
Samtec Inc. FTE-108-02-G-DV	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount	4.45 mm	0.175 in	Header			0.055 in	1.4 mm
Samtec Inc. FTE-108-03-G-DH-K-TR	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull	3.05 mm	0.12 in	Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount Right Angle	3.05 mm	0.12 in	Header					Pick and Place
Samtec Inc. FTE-108-02-G-DV-P	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount	4.45 mm	0.175 in	Header			0.055 in	1.4 mm	Pick and Place
Samtec Inc. FTE-108-02-G-DV-A	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull			Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount	4.45 mm	0.175 in	Header			0.055 in	1.4 mm	Board Guide
Samtec Inc. FTE-108-01-G-DH-TR	Black	Liquid Crystal Polymer (LCP)	UL94 V-0	0.031 in	0.8 mm	Solder	Push-Pull	3.05 mm	0.12 in	Phosphor Bronze	16	1.2 mm	0.047 in	Gold	Male Pin	2	All	Gold	-55 °C	125 °C	2.7 A	Square	Unshrouded	10 çin	0.25 çm	Surface Mount Right Angle			Header	1.9 mm	0.075 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	91	$ 3.76

Description

General part information

FTE-108 Series

Connector Header Surface Mount 16 position 0.031" (0.80mm)
