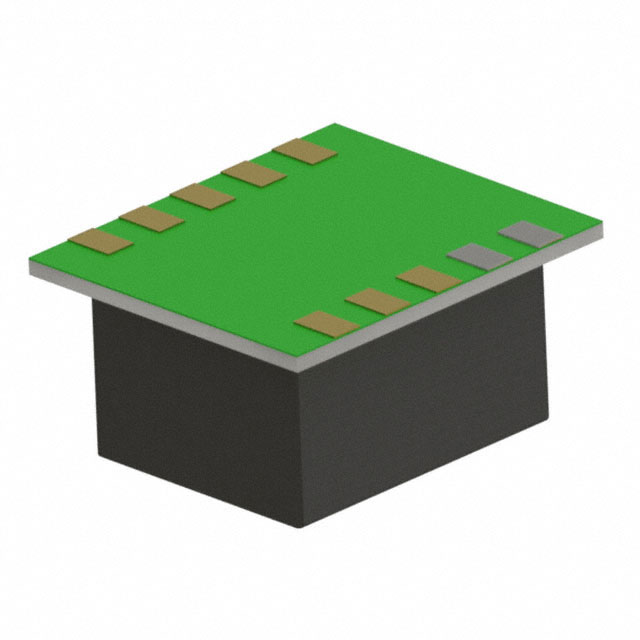

MAXM17903AMB+T
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17903AMB+T
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17903AMB+T | MAXM17903 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Board Type | - | Fully Populated |
| Current - Output | - | 300 mA |
| Current - Output (Max) [Max] | 300 mA | 300 mA |
| Features | OCP, UVLO, OTP, SCP | OCP, UVLO, OTP, SCP |
| Frequency - Switching | - | 500 kHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 10-SMD Module | 10-SMD Module |
| Regulator Topology | - | Buck |
| Size / Dimension [x] | 0.12 in | 0.12 in |
| Size / Dimension [x] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.1 in | 0.1 in |
| Size / Dimension [y] | 2.6 mm | 2.6 mm |
| Size / Dimension [z] | 0.06 " | 0.06 " |
| Size / Dimension [z] | 1.5 mm | 1.5 mm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 10-eMGA | 10-eMGA |
| Supplier Device Package [x] | 3 | 3 |
| Supplier Device Package [y] | 2.6 | 2.6 |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Utilized IC / Part | - | MAXM17903 |
| Voltage - Input | - | 21.5 V |
| Voltage - Input | - | 4.5 V |
| Voltage - Input (Max) [Max] | 24 V | 24 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 1.5 V |
| Voltage - Output 1 [Max] | 5 V | 5 V |
| Voltage - Output 1 [Min] | 0.9 V | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.90 | |
| 10 | $ 3.97 | |||
| 25 | $ 3.47 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.64 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.33 | |||
| Digi-Reel® | 1 | $ 5.90 | ||
| 10 | $ 3.97 | |||
| 25 | $ 3.47 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.64 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.33 | |||
| Tape & Reel (TR) | 2500 | $ 2.19 | ||
MAXM17903 Series
EVAL MAXM15064 .9-3.3V 300MA
| Part | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Voltage - Output | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Main Purpose | Frequency - Switching | Current - Output | Mounting Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Features | Applications | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17903EVKIT# | Board(s) | 21.5 V | 4.5 V | MAXM17903 | 1.5 V | Non-Isolated | 1 | Fully Populated | Buck | DC/DC, Step Down | 500 kHz | 300 mA | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17903AMB+T | Surface Mount | 0.9 V | 5 V | 10-eMGA | 2.6 | 3 | 125 °C | -40 °C | 300 mA | 24 V | 4.5 V | 1 | OCP, OTP, SCP, UVLO | ITE (Commercial) | Non-Isolated PoL Module | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 10-SMD Module |
Description
General part information
MAXM17903 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 5V 300mA 4.5V - 24V Input
