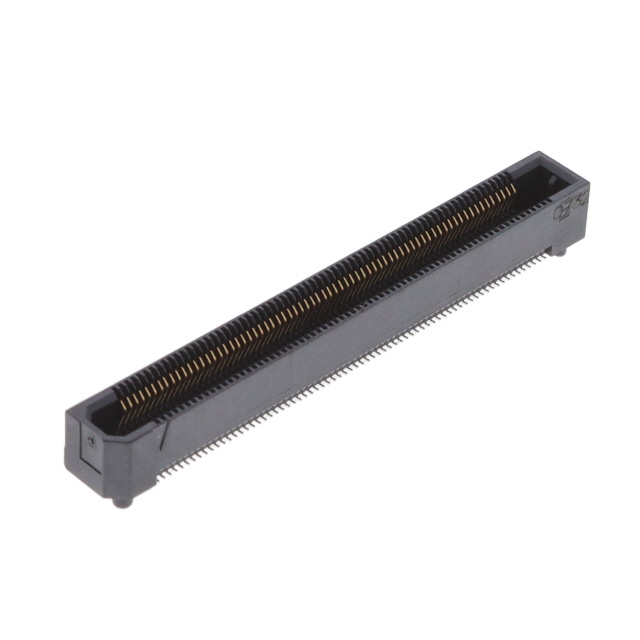

ERF5-070-05.0-L-DV-K-TR

Active

Samtec Inc.

CONN SOCKET 140POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 140POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-070-05.0-L-DV-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	4.9 mm
Height Above Board [z]	0.193 in
Mated Stacking Heights	10 mm, 9 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type
Samtec Inc. ERF5-070-07.0-L-DV-TR	6.9 mm	0.272 in	Gold	Board Guide	Surface Mount	9 mm 11 mm 12 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	140	Socket Center Strip Contacts
Samtec Inc. ERF5-070-07.0-S-DV-K-TR	6.9 mm	0.272 in	Gold	Board Guide Pick and Place	Surface Mount	9 mm 11 mm 12 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	140	Socket Center Strip Contacts
Samtec Inc. ERF5-070-05.0-L-DV-K-TR	4.9 mm	0.193 in	Gold	Board Guide Pick and Place	Surface Mount	7 mm 9 mm 10 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	140	Socket Center Strip Contacts
