EV10N93A
ActiveMicrochip Technology

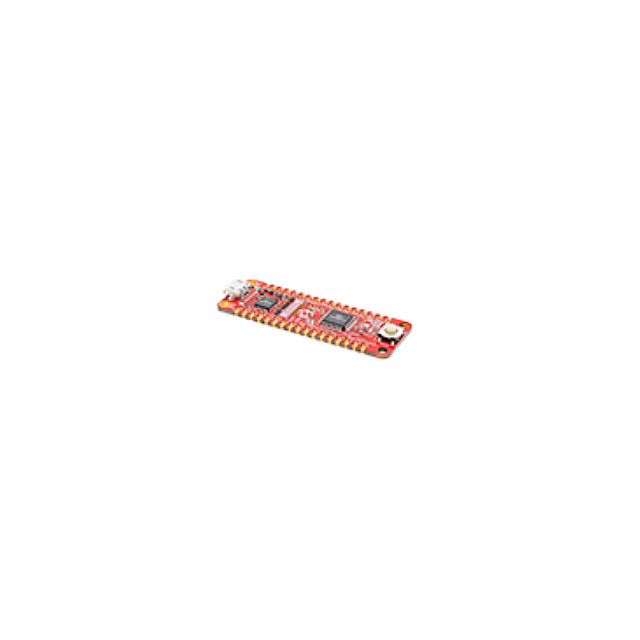

PIC32CM MC00 CURIOSITY NANO BRD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EV10N93A
ActiveMicrochip Technology
PIC32CM MC00 CURIOSITY NANO BRD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EV10N93A | PIC32CM1216MC00032 Series |
|---|---|---|
| Board Type | Evaluation Platform | Evaluation Platform |
| Connectivity | - | LINbus |
| Connectivity | - | I2C |
| Connectivity | - | SERCOM |
| Connectivity | - | SMBus |
| Connectivity | - | SPI |
| Connectivity | - | RS-485 |
| Connectivity | - | UART/USART |
| Connectivity | - | IrDA |
| Contents | Board(s) | Board(s) |
| Core Processor | PIC | ARM® Cortex®-M0+, PIC |
| Core Size | - | 32-Bit Single-Core |
| Data Converters | - | A/D 14x12b, 1x16b Sigma-Delta |
| Data Converters | - | D/A 1x10b |
| EEPROM Size | - | 4 K |
| Grade | - | Automotive |
| Mounting Type | Fixed | Surface Mount, Surface Mount, Wettable Flank, Fixed |
| Number of I/O | - | 26 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 - 125 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 32-TQFP, 32-VFQFN Exposed Pad |
| Peripherals | - | DMA, WDT, Brown-out Detect/Reset, POR, Motor Control, PWM |
| Platform | Curiosity Nano | Curiosity Nano |
| Program Memory Size | - | 128 KB |
| Program Memory Type | - | FLASH |
| Qualification | - | AEC-Q100 |
| RAM Size | - | 16 K |
| Speed | - | 48 MHz |
| Suggested Programming Environment | MPLAB X | MPLAB X |
| Supplier Device Package | - | 32-TQFP (7x7), 32-VQFN (5x5) |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | PIC32CM1216MC00032 | PIC32CM1216MC00032 |
| Voltage - Supply (Vcc/Vdd) | - | 2.7 V |
| Voltage - Supply (Vcc/Vdd) | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.19 | |
PIC32CM1216MC00032 Series
RISC MICROCONTROLLER, 32-BIT, FLASH, CORTEX-M0+ CPU, 48MHZ, CMOS, PQFP32
| Part | Package / Case | Oscillator Type | Core Processor | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Connectivity [custom] | Supplier Device Package | EEPROM Size | Data Converters [custom] | Data Converters [custom] | Program Memory Type | Program Memory Size | RAM Size | Peripherals | Core Size | Mounting Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Speed | Number of I/O | Qualification | Grade | Suggested Programming Environment | Board Type | Utilized IC / Part | Contents | Type | Platform |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology PIC32CM1216MC00032T-E/PT | 32-TQFP | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-TQFP (7x7) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount | 2.7 V | 5.5 V | -40 °C | 125 °C | 48 MHz | 26 | AEC-Q100 | Automotive | ||||||
Microchip Technology PIC32CM1216MC00032T-E/RTB | 32-VFQFN Exposed Pad | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-VQFN (5x5) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount, Wettable Flank | 2.7 V | 5.5 V | -40 °C | 125 °C | 48 MHz | 26 | AEC-Q100 | Automotive | ||||||
Microchip Technology PIC32CM1216MC00032-I/PT | 32-TQFP | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-TQFP (7x7) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount | 2.7 V | 5.5 V | -40 °C | 85 °C | 48 MHz | 26 | ||||||||
Microchip Technology PIC32CM1216MC00032-E/RTB | 32-VFQFN Exposed Pad | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-VQFN (5x5) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount, Wettable Flank | 2.7 V | 5.5 V | -40 °C | 125 °C | 48 MHz | 26 | AEC-Q100 | Automotive | ||||||
Microchip Technology EV10N93A | PIC | Fixed | MPLAB X | Evaluation Platform | PIC32CM1216MC00032 | Board(s) | MCU 32-Bit | Curiosity Nano | |||||||||||||||||||||||||||
Microchip Technology PIC32CM1216MC00032-E/PT | 32-TQFP | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-TQFP (7x7) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount | 2.7 V | 5.5 V | -40 °C | 125 °C | 48 MHz | 26 | AEC-Q100 | Automotive | ||||||
Microchip Technology PIC32CM1216MC00032-I/RTB | 32-VFQFN Exposed Pad | Internal | ARM® Cortex®-M0+ | LINbus | I2C | SERCOM | SMBus | SPI | RS-485 | UART/USART | IrDA | 32-VQFN (5x5) | 4 K | 1x16b Sigma-Delta, A/D 14x12b | D/A 1x10b | FLASH | 128 KB | 16 K | Brown-out Detect/Reset, DMA, Motor Control, POR, PWM, WDT | 32-Bit Single-Core | Surface Mount, Wettable Flank | 2.7 V | 5.5 V | -40 °C | 85 °C | 48 MHz | 26 |
Description
General part information
PIC32CM1216MC00032 Series
PIC32CM1216MC00032 Curiosity Nano PIC® PIC MCU 32-Bit Embedded Evaluation Board
