YHD36-24-91SE00000

Active

TE Connectivity Deutsch Connectors

PLUG ASM

Search across all available documentation for this part.

Active

TE Connectivity Deutsch Connectors

PLUG ASM

Technical Specifications

Parameters and characteristics for this part

Specification	YHD36-24-91SE00000

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8 (2), 12 (2), 16 (5)
Contact Type	Crimp
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	91
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Female Sockets

PLUG ASM

Part	Shielding	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Note	Contact Shape	Contact Type	Connector Type	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Primary Material	Contact Size	Shell Material	Type
TE Connectivity Deutsch Connectors YHD36-24-91SE00000	Unshielded	Keyed	-55 °C	125 °C	9	UL94 V-0	Contacts Not Included, Jam Nut Not Included	Circular	Crimp	Plug Housing	Push-Pull	91	24	Free Hanging (In-Line)	Metal	12 (2), 16 (5), 8 (2)	Aluminum Alloy	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

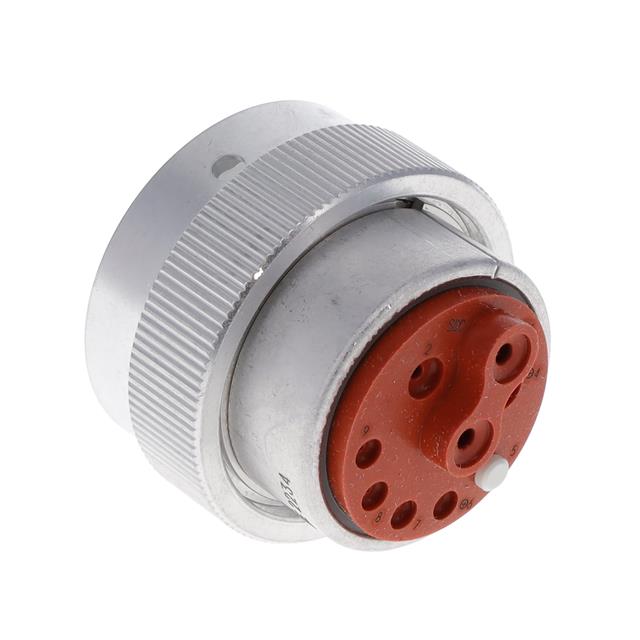

9 Position Circular Connector Plug Housing Free Hanging (In-Line)
