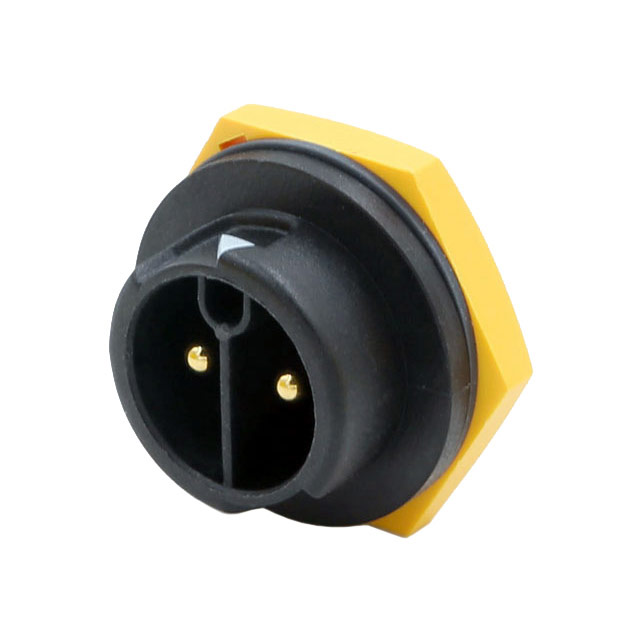

Specification	23002535-03

Applications	Industrial, Marine, Lighting, Communication Systems
Color	Yellow, Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass, Phosphor Bronze
Current Rating	20 A
Fastening Type	Push-Twist
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-45 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	300 VAC/DC
