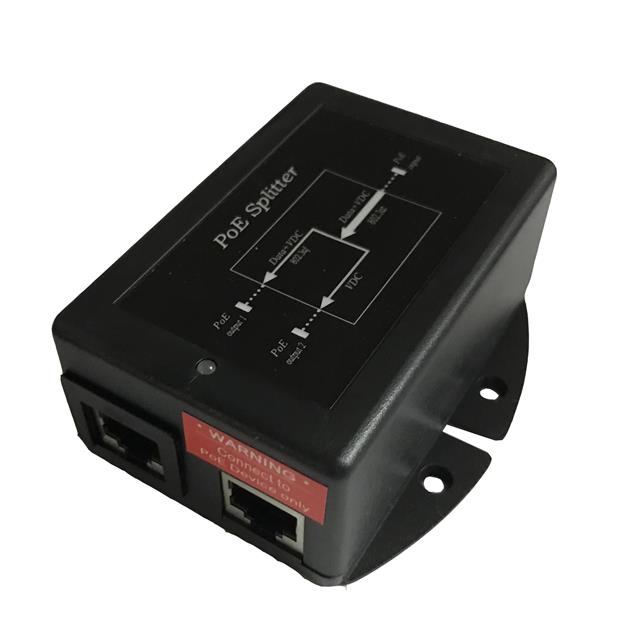

POE-SPLT-48G-VUB

Obsolete

Tycon Systems Inc.

GIGABIT POE SPLITTER.48VDC 802.3

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

GIGABIT POE SPLITTER.48VDC 802.3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-SPLT-48G-VUB	POE-S Series

Approval Agency	-	FCC
Compliance	-	IEEE802.3at
Current - Output	-	830 mA
Data Rate	-	10 - 1000 Mbps
Efficiency	-	85 %
Features	-	SCP, UVLO, OVP, OCP
For Use With/Related Products	Ethernet, RJ45	Ethernet, RJ45
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Chassis Mount
Number of Ports	-	1
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Output Connector	-	RJ45 (Data, Power)
Power (Watts) - Per Port	-	20 W
Size / Dimension	-	78 mm
Size / Dimension	-	83.8 mm
Size / Dimension	-	3.3 "
Size / Dimension	-	3.07 in
Size / Dimension	-	1.4 "
Size / Dimension	-	35.6 mm
Type	PoE Splitter	PoE Splitter, Splitter
Voltage - Output	-	24 V

GIGABIT POE SPLITTER.48VDC 802.3

Part	Type	For Use With/Related Products	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Output Connector	Compliance	Efficiency	Data Rate	Power (Watts) - Per Port	Features	Mounting Type	Number of Ports
Tycon Systems Inc. POE-SPLT-48G-VUB	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824AC	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4812G-P	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824G-P	PoE Splitter, Splitter	Ethernet, RJ45	FCC	78 mm	83.8 mm	3.3 "	3.07 in	1.4 "	35.6 mm	830 mA	RJ45 (Data, Power)	65 °C	-30 ░C	24 V	RJ45 (Data, Power)	IEEE802.3at	85 %	10 Mbps, 100 Mbps, 1000 Mbps	20 W	OCP, OVP, SCP, UVLO	Chassis Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PoE Splitter Ethernet, RJ45
