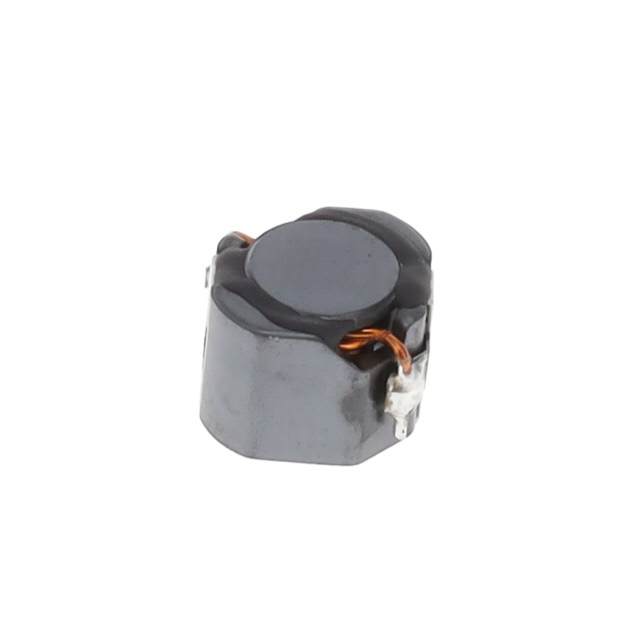

CDRH80D65BT150NP-3R9NC
ActiveSumida America Components Inc.
FIXED IND 3.9UH 6.1A 11.8MOHM SM
CDRH80D65BT150NP-3R9NC
ActiveSumida America Components Inc.
FIXED IND 3.9UH 6.1A 11.8MOHM SM
Description
General part information
CDRH80D65BT150NP-3R9NC
3.9 µH Shielded Inductor 6.1 A 11.8mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH80D65BT150NP-3R9NC |
|---|---|
| Current - Saturation (Isat) | 7.05 A |
| Current Rating | 6.1 A |
| DC Resistance (DCR) | 11.8 mOhm |
| Height - Seated (Max) | 0.268 in |
| Inductance | 3.9 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.339 in |
| Size / Dimension Width | 0.323 in |
| Tolerance | 30 % |
