FAG.1B.314.CLA

Active

LEMO

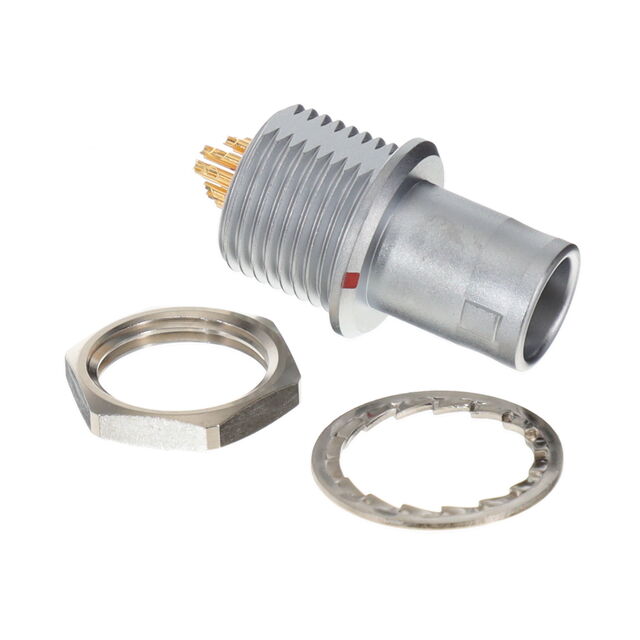

CONN PLUG MALE 14P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAG.1B.314.CLA

Active

LEMO

CONN PLUG MALE 14P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.01
		10	$ 52.77
		25	$ 47.95
		50	$ 44.69
		100	$ 41.74
		250	$ 38.27

Description

General part information

FAG.1B Series

14 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAG.1B.314.CLA	FAG.1B Series

Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	2 A	1.5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	14	4 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	314	303 - 316
Shielding	Shielded	Shielded
Termination	-	Solder

FAG.1B Series

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Shell Finish	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Fastening Type	Connector Type	Shielding	Primary Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Feature	Color	Orientation	Ingress Protection	Number of Positions	Mounting Type	Termination	Number of Positions
LEMO FAG.1B.303.CLA	303	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	12 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50
LEMO FAG.1B.305.CLA	305	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	9 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50
LEMO FAG.1B.310.CLD	310	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	2.5 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50	10	Panel Mount, Through Hole	Solder
LEMO FAG.1B.314.CLA	314	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	2 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50	14
LEMO FAG.1B.304.CLA	304	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	10 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50	4
LEMO FAG.1B.308.CLA	308	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	5 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50	8
LEMO FAG.1B.316.CLA	316	Gold	UL94 V-0	Chrome	Brass	1 µm	39.4 µin	1.5 A	Push-Pull	Male Pins, Plug	Shielded	Metal	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Bulkhead - Rear Side Nut	Silver	G	IP50				16
