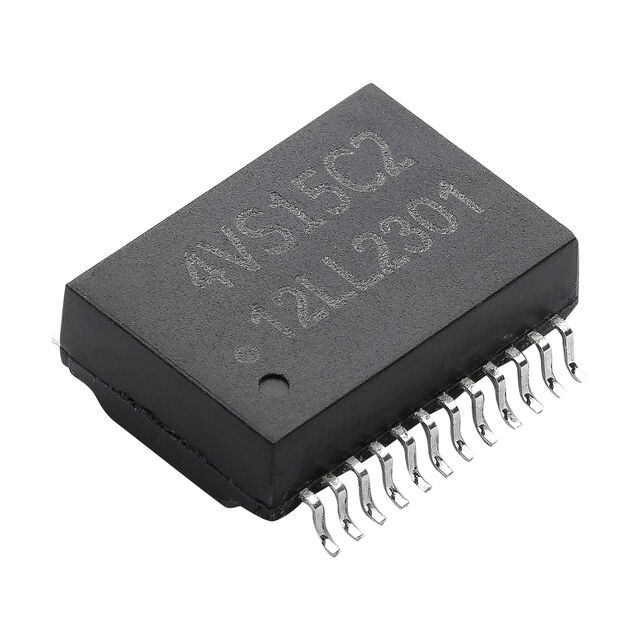

LAN4VSOPS24151C2
ActiveEaton - Electronics Division
MOD TRANS LAN 5GB-T 1P POE
LAN4VSOPS24151C2
ActiveEaton - Electronics Division
MOD TRANS LAN 5GB-T 1P POE
Description
General part information
LAN4VSOPS24151C2
180µH LAN 5G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LAN4VSOPS24151C2 |
|---|---|
| Height - Seated (Max) | 0.26 in |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.535 in |
| Size / Dimension Width | 0.472 in |
| Transformer Type | Power over Ethernet (PoE), LAN 5G Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
