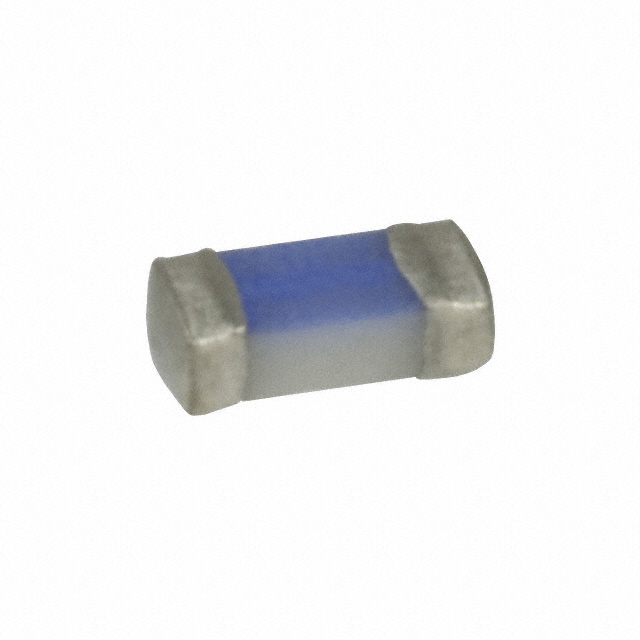

TR/0603FA3.5-R
ActiveEaton - Electronics Division
FUSE BRD MT 3.5A 32VAC/VDC 0603
TR/0603FA3.5-R
ActiveEaton - Electronics Division
FUSE BRD MT 3.5A 32VAC/VDC 0603
Description
General part information
TR/0603FA3.5-R
3.5 A 32 V AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR/0603FA3.5-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 35 A |
| Current Rating | 3.5 A |
| DC Cold Resistance | 0.022 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.12 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.019 in |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in |
| Voltage Rating - AC | 32 VAC |
| Voltage Rating - DC | 32 V |
