07011160
ActivePerle Systems
IDS-105G-DSFP-XT - 5 PORT INDUST
07011160
ActivePerle Systems
IDS-105G-DSFP-XT - 5 PORT INDUST
Description
General part information
07011160

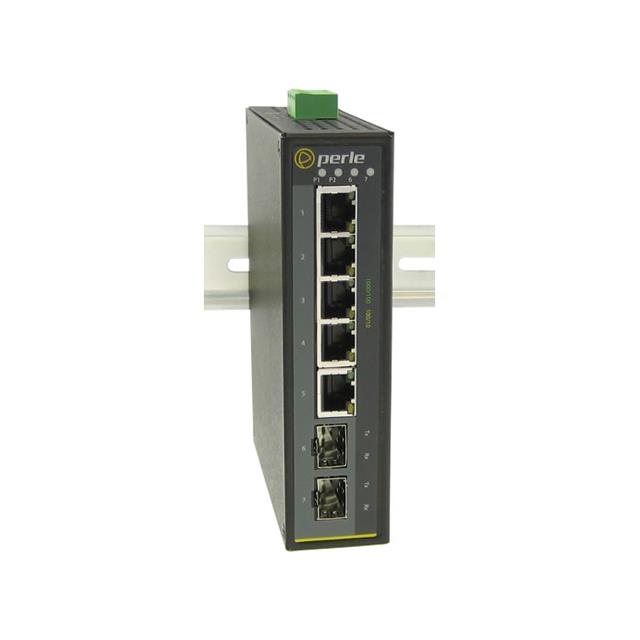

Network Switch - Unmanaged 7 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | 07011160 |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 5 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 2 |
| Fiber Type | SFP |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 7 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 2 |
| SFP/XFP Type | SFP |
| Type | Switch - Unmanaged |
| Voltage - Input (Range 1) Maximum | 30 V |
| Voltage - Input (Range 1) Minimum | 18 V |
| Voltage - Input (Range 2) Maximum | 60 V |
| Voltage - Input (Range 2) Minimum | 9.6 V |
