MAL213964689E3
ObsoleteVishay Dale
CAPACITOR,NON-SPECIFIED,68UF,10VDC,20-% TOL,20+% TOL
MAL213964689E3
ObsoleteVishay Dale
CAPACITOR,NON-SPECIFIED,68UF,10VDC,20-% TOL,20+% TOL
Description
General part information
MAL213964689E3

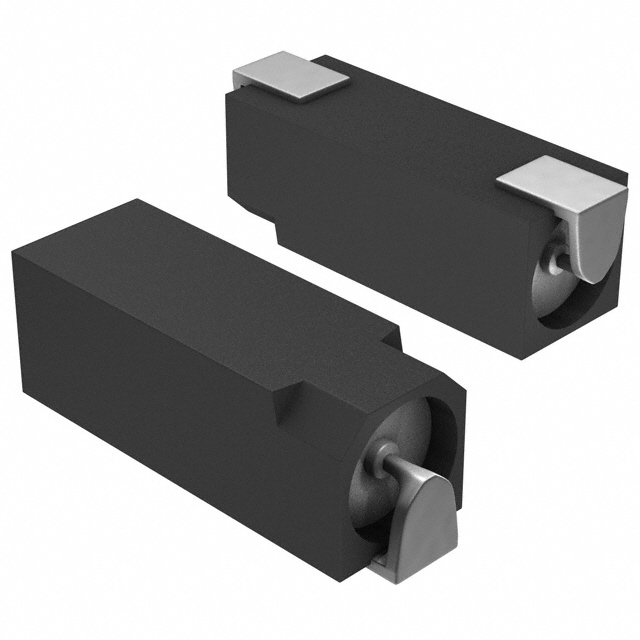

68 µF 10 V Aluminum Electrolytic Capacitors Nonstandard SMD 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213964689E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 68 µF |
| Height - Seated (Max) | 0.272 in |
| Impedance | 2.9 Ohms |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard SMD |
| Polarization | Polar |
| Ripple Current | 71 mA |
| Size / Dimension Length | 0.563 in |
| Size / Dimension Width | 0.244 in |
| Surface Mount Land Length | 0.563 in |
| Surface Mount Land Width | 0.244 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
