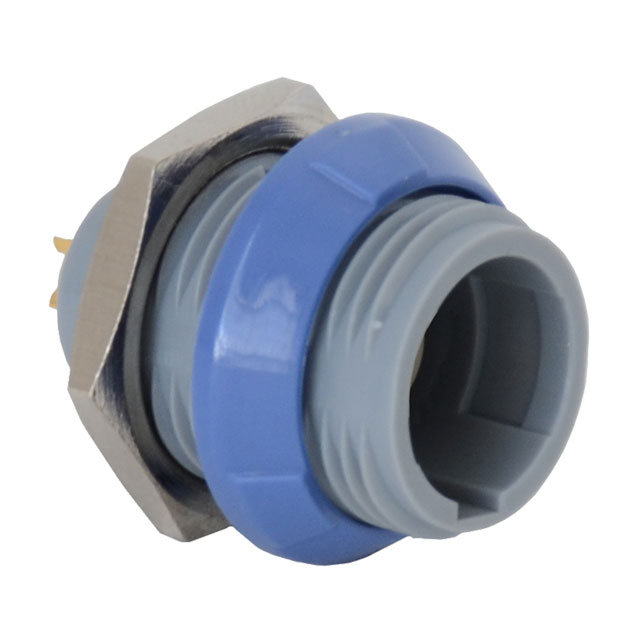

Specification	PLB1G620009

Applications	Medical, Industrial, Testing Equipment & Measurement
Color	Blue, Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Material	Copper Alloy
Current Rating	3 A
Fastening Type	Latch Lock, Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Front and Rear Side Nut
Mounting Type	Panel Mount
Number of Positions	9
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation Angle	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded
Termination	Solder Cup

PLB1G Series

...

Part	Connector Type	Fastening Type	Termination	Number of Positions	Shielding	Color	Insert Material	Contact Finish - Mating	Shell Material	Contact Finish Thickness - Mating	Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Applications	Primary Material	Orientation	Current Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Orientation Angle
ITT Cannon, LLC PLB1G020E14	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	14	Unshielded	Black Gray	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	E	2 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G520C08	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	8	Unshielded	Gray Green	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	C	5 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G520002	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	2	Unshielded	Gray Green	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic		10 A	Panel Mount	-50 °C	150 °C	Front and Rear Side Nut	0 °
ITT Cannon, LLC PLB1G120J06	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	6	Unshielded	Gray White	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	J	6 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G120J07	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	7	Unshielded	Gray White	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	J	5 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G120E09	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	9	Unshielded	Gray White	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	E	3 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G520H02	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	2	Unshielded	Gray Green	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	H	10 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G520H07	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	7	Unshielded	Gray Green	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	H	5 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G520J02	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	2	Unshielded	Gray Green	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	J	10 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
ITT Cannon, LLC PLB1G120A14	Female Sockets Receptacle	Latch Lock Push-Pull	Solder Cup	14	Unshielded	Gray White	PEEK Polyetheretherketone	Gold	Polysulfone (PSU)	20 Ąin	Copper Alloy	Dust Protected	IP50	Industrial Medical Testing Equipment & Measurement	Plastic	A	2 A	Panel Mount	-50 °C	150 °C	Bulkhead Front or Rear Side Nut
