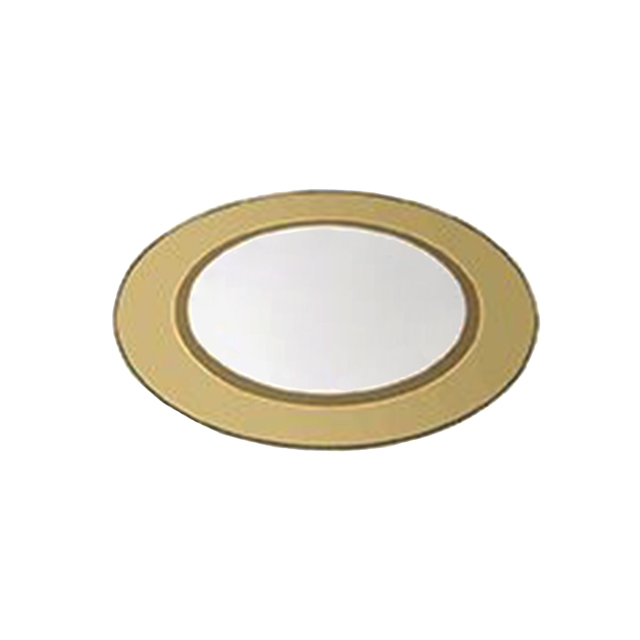

7BB-15-6

Obsolete

Murata Electronics

BUZZER ELEMENT STD 6KHZ 15MM

Search across all available documentation for this part.

Obsolete

Murata Electronics

BUZZER ELEMENT STD 6KHZ 15MM

Technical Specifications

Parameters and characteristics commom to parts in this series

BUZZER ELEMENT FDBK 4.6KHZ 27MM

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Termination	Impedance	Capacitance @ Frequency	Frequency	Operating Temperature [Min]	Operating Temperature [Max]
Murata Electronics 7BB-27-4C	1.063 "	27 mm	Feedback	None	200 Ohms	18000 pF	4.6 kHz
Murata Electronics 7BB-41-2C	1.614 "	41 mm	Feedback	Wire Leads	250 Ohms	24000 pF	2.2 kHz
Murata Electronics 7BB-20-3	0.787 in	20 mm	Standard	None	500 Ohms	20000 pF	3.6 kHz
Murata Electronics 7BB-35-3C	1.378 in	35 mm	Feedback	None	200 Ohms	26000 pF	2.8 kHz
Murata Electronics 7BB-35-3L0	1.378 in	35 mm	Standard	Wire Leads	200 Ohms	30000 pF	2.8 kHz
Murata Electronics 7BB-41-2L0	1.614 "	41 mm	Standard	Wire Leads		30000 pF	2.2 kHz
Murata Electronics 7BB-15-6	0.591 in	15 mm	Standard	None	800 Ohms	10000 pF	6 kHz
Murata Electronics 7BB-41-2CL0	1.614 "	41 mm	Feedback	Wire Leads	350 Ohms	24000 pF	2.2 kHz	-20 C	70 °C
Murata Electronics 7BB-27-4	1.063 "	27 mm	Standard	None	200 Ohms	20000 pF	4.6 kHz
Murata Electronics 7BB-20-6C	0.787 in	20 mm	Feedback	Wire Leads	500 Ohms	8500 pF	6.3 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 kHz Standard Buzzer Element 0.591" Dia (15.00mm) 800 Ohms
