AV-13.560MAHI-T
ActiveTXC CORPORATION
3.2X2.5 GLASS SEAL MHZ QUARTZ XTAL -4PAD - AUTOMOTIVE GRADE / CERAMIC, +/-30PPM @25C, +/-30PPM (-40 TO 85C), 16PF - AEC-Q200 CER
AV-13.560MAHI-T
ActiveTXC CORPORATION
3.2X2.5 GLASS SEAL MHZ QUARTZ XTAL -4PAD - AUTOMOTIVE GRADE / CERAMIC, +/-30PPM @25C, +/-30PPM (-40 TO 85C), 16PF - AEC-Q200 CER
Description
General part information

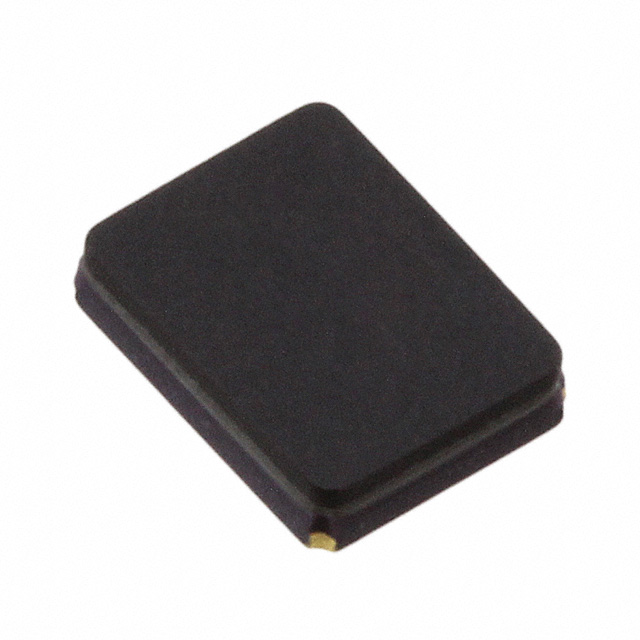

AV-13.560MAHI-T
13.56 MHz ±30ppm Crystal 16pF 120 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | AV-13.560MAHI-T |
|---|---|
| ESR (Equivalent Series Resistance) | 120 Ohm |
| Frequency | 13.56 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.035 in |
| Load Capacitance | 16 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
