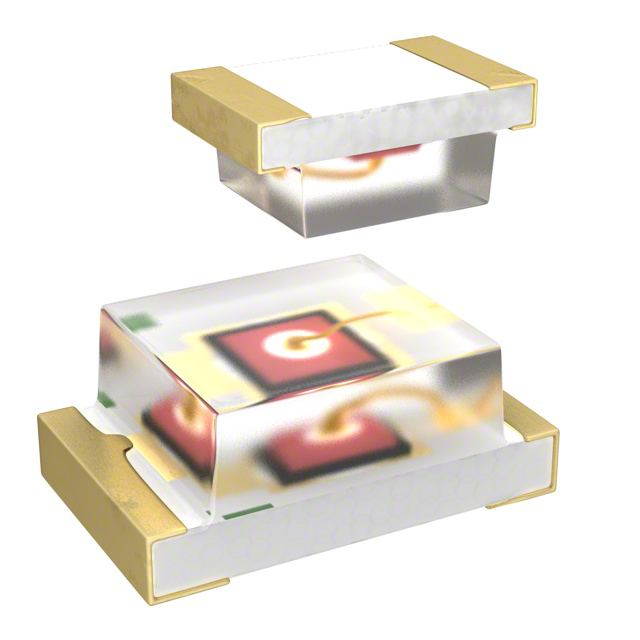

ALS-PT17-51C/L177/TR8
ActiveEverlight Electronics Co Ltd
PHOTO TRANSISTOR, 630NM, 2 X 1.25 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALS-PT17-51C/L177/TR8
ActiveEverlight Electronics Co Ltd
PHOTO TRANSISTOR, 630NM, 2 X 1.25 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALS-PT17-51C/L177/TR8 |
|---|---|
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 5.5 V |
| Wavelength | 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| Digi-Reel® | 1 | $ 0.74 | ||
| Tape & Reel (TR) | 12000 | $ 0.25 | ||
Description
General part information
ALS-PT17-51C/L177/TR8
Phototransistors 630nm Top View 0805 (2012 Metric)
Documents
Technical documentation and resources
