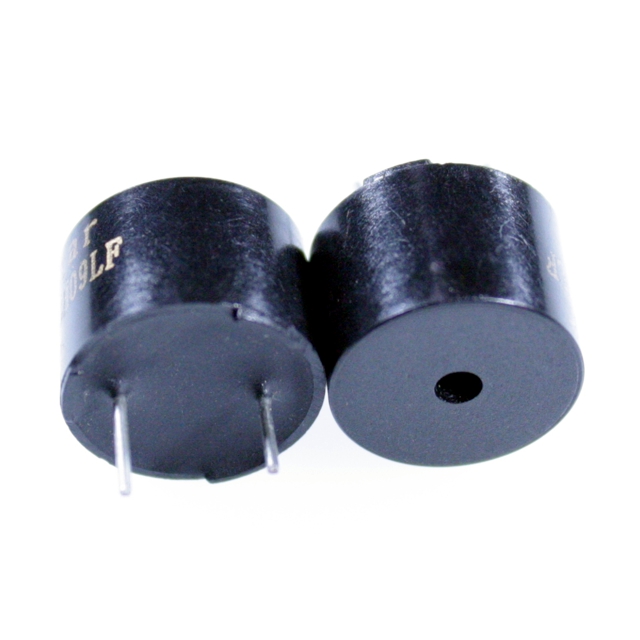

BMT1212H09

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 12V 12MM TH

Search across all available documentation for this part.

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 12V 12MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER MAGNETIC 12V 12MM TH

Part	Voltage - Rated	Technology	Voltage Range [Max]	Voltage Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Port Location	Termination	Current - Supply	Frequency
BeStar Technologies, Inc. BMT1212H09	12 VDC	Magnetic	16 V	7 V	0.571 in	14.5 mm	85 °C	-40 °C	85 dB	12 mm	0.472 in	Through Hole	Top	PC Pins	40 mA	2.4 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Magnetic 12 V 40mA 2.4kHz 85dB @ 12V, 10cm Through Hole PC Pins
