Description
General part information

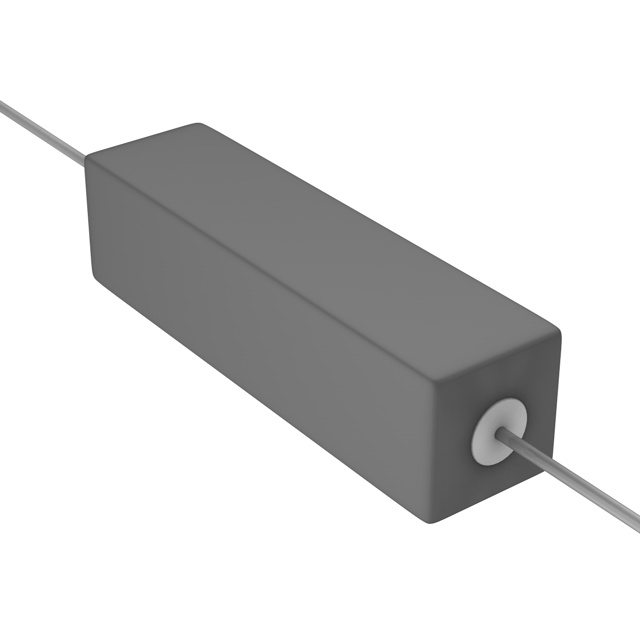

PSP900JB-510R
510 Ohms ±5% 9W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | PSP900JB-510R |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 9 W |
| Resistance | 510 Ohm |
| Size / Dimension Length | 1.496 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 0.354 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
