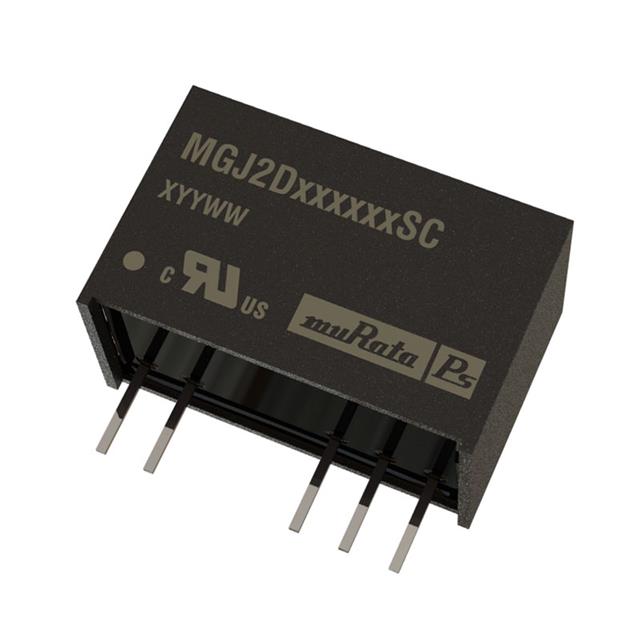

MGJ2D241709SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 17V -9V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MGJ2D241709SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 17V -9V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MGJ2D241709SC	MGJ2D24 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Current - Output (Max)	80 mA	40 - 95 mA
Current - Output (Max)	-	95 mA
Efficiency	83 %	80 - 83 %
Features	-	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads
Power (Watts)	2 W	1.6 - 2 W
Size / Dimension	-	0.39 "
Size / Dimension	-	19.7 mm
Size / Dimension	-	12.7 mm
Size / Dimension	-	0.5 in
Size / Dimension	-	0.77 in
Size / Dimension	-	10 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	26.4 V
Voltage - Input (Min) [Min]	21.6 V	21.6 V
Voltage - Isolation	5.2 kV	5.2 kV
Voltage - Output 1	-	15 - 20 V
Voltage - Output 2	-9 V	-9 - -3 V

MGJ2D24 Series

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, THROUGH HOLE, FIXED, 26.4 V, 21.6 V, 2 ROHS COMPLIANT: YES

Part	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Applications	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max)	Features	Efficiency	Current - Output (Max)
Murata Power Solutions Inc. MGJ2D242005SC	5.2 kV	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	26.4 V	Through Hole	Isolated Module	20 V	100 °C	-40 °C	-5 V	ITE (Commercial), Medical	7-SIP Module, 5 Leads	2 W	21.6 V	2	40 mA, 80 mA	SCP
Murata Power Solutions Inc. MGJ2D241802SC	5.2 kV							26.4 V	Through Hole	Isolated Module	18 V	100 °C	-40 °C		ITE (Commercial), Medical	7-SIP Module, 5 Leads	1.6 W	21.6 V	2	80 mA		80 %
Murata Power Solutions Inc. MGJ2D241503SC	5.2 kV							26.4 V	Through Hole	Isolated Module	15 V	100 °C	-40 °C	-3 V	ITE (Commercial), Medical	7-SIP Module, 5 Leads	1.7 W	21.6 V	2	95 mA		80 %	95 mA
Murata Power Solutions Inc. MGJ2D241505SC	5.2 kV	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	26.4 V	Through Hole	Isolated Module	15 V	100 °C	-40 °C	-5 V	ITE (Commercial), Medical	7-SIP Module, 5 Leads	2 W	21.6 V	2	40 mA, 80 mA	SCP	80.5 %
Murata Power Solutions Inc. MGJ2D241709SC	5.2 kV							26.4 V	Through Hole	Isolated Module		100 °C	-40 °C	-9 V	ITE (Commercial), Medical	7-SIP Module, 5 Leads	2 W	21.6 V	2	80 mA		83 %
Murata Power Solutions Inc. MGJ2D242003SC	5.2 kV							26.4 V	Through Hole	Isolated Module	20 V	100 °C	-40 °C	-3.5 V	ITE (Commercial), Medical	7-SIP Module, 5 Leads	2 W	21.6 V	2	80 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.46
		5	$ 8.42
		10	$ 8.36
		25	$ 8.27
		50	$ 8.06
		100	$ 7.66
		250	$ 7.17
		500	$ 6.68
		1000	$ 6.26

Description

General part information

MGJ2D24 Series

Isolated Module DC DC Converter 2 Output 17V -9V 80mA, 80mA 21.6V - 26.4V Input
