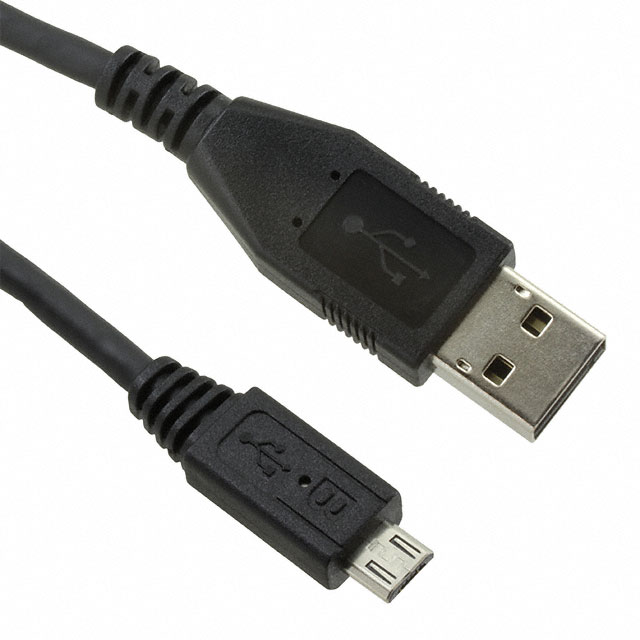

ZX40-B-5S-1000-STDA(30)

Obsolete

Hirose Electric Co Ltd

ZX40-B-5S-1000-STDA(30) HIROSE ELECTRIC CABLE ASSEMBLY USB 1M USB 2.0 TYPE A TO MICRO USB 2.0 TYPE B 5 POS - ARROW.COM

Search across all available documentation for this part.

Obsolete

Hirose Electric Co Ltd

ZX40-B-5S-1000-STDA(30) HIROSE ELECTRIC CABLE ASSEMBLY USB 1M USB 2.0 TYPE A TO MICRO USB 2.0 TYPE B 5 POS - ARROW.COM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX40-B-5S-1000-STDA(30)	ZX40 Series

Accessory Type	-	Shielding Plate, Top
Configuration	A Male to Micro B Male	A Male to Micro B Male
Connector Type	-	USB - micro B
Contact Finish	-	Gold
Current Rating (Amps)	-	1 A
Features	Data Transfer, Charge	Data Transfer, Charge
For Use With/Related Products	-	USB - microUSB B Plug
Gender	-	Plug
Insulation Color	-	Black
Length [x]	1 m	1 - 500 m
Length [x]	3.28 ft	1.64 - 3.28 ft
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	10000
Mounting Type	-	Free Hanging (In-Line)
Number of Contacts	-	5
Number of Ports	-	1
Operating Temperature	-	-30 ░C
Operating Temperature	-	85 °C
Shell/Shielding Material	-	Stainless, Steel
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	-	Solder
Transfer Rate	480 Mbps	480 Mbps
Voltage - Rated	-	30 VAC

ZX40-B-5S-1000-STDA(30) HIROSE ELECTRIC CABLE ASSEMBLY USB 1M USB 2.0 TYPE A TO MICRO USB 2.0 TYPE B 5 POS - ARROW.COM

Part	Shielding	Specifications	Length [x]	Length [x]	Transfer Rate	Configuration	Features	Voltage - Rated	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell/Shielding Material	Mounting Type	Contact Finish	Mating Cycles	Number of Contacts	Number of Ports	Gender	For Use With/Related Products	Accessory Type
Hirose Electric Co Ltd ZX40-B-5S-1000-STDA(30)	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	A Male to Micro B Male	Charge, Data Transfer
Hirose Electric Co Ltd ZX40-B-5S-UNIT(31)		USB 2.0						30 VAC	UL94 V-0	1 A	Black	Solder	-30 ░C	85 °C	USB - micro B	Stainless, Steel	Free Hanging (In-Line)	Gold	10000	5	1	Plug
Hirose Electric Co Ltd ZX40-B-SLDA																							USB - microUSB B Plug	Shielding Plate, Top
Hirose Electric Co Ltd ZX40-B-5S-500-STDA(30)	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	A Male to Micro B Male	Charge, Data Transfer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB 2.0 Cable A Male to Micro B Male 3.28' (1.00m) Shielded
