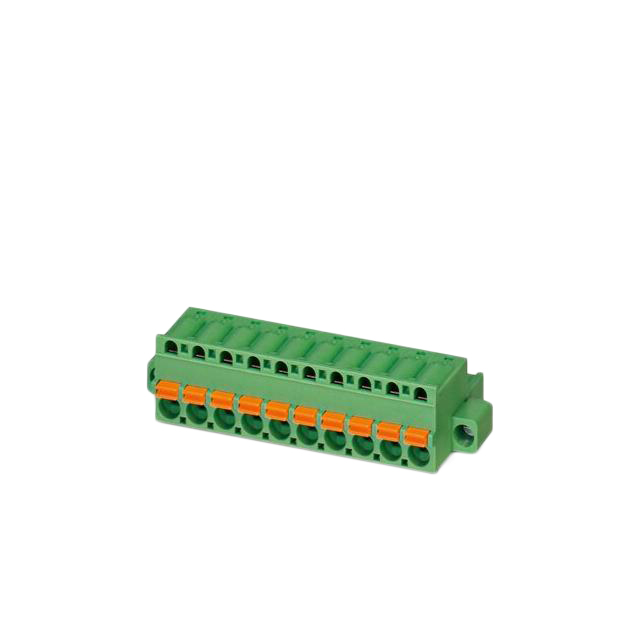

Specification	1745027

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Features	Mating Flange, Retention Latches (Non-Wire Side), Positions Stamped
Insulation Height	0.591 in
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch	5.08 mm
Plug Wire Entry Angle	180 °
Positions Per Level	2
Termination Style	Screwless - Leg Spring, Push-In Spring
Type	Female Sockets, Plug
Voltage - IEC	250 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²
Wire Strip Length	10 mm
