6-103644-2
ActiveTE Connectivity AMP Connectors

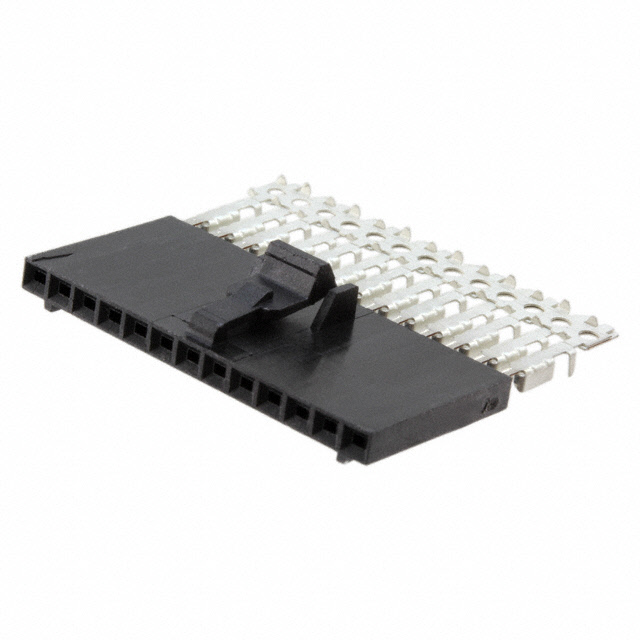

CONN RCPT 13P IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
6-103644-2
ActiveTE Connectivity AMP Connectors
CONN RCPT 13P IDC 22-26AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-103644-2 | 103644 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 13 | 13 - 21 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 714 | $ 4.55 | |
103644 Series
CONN RCPT 13P IDC 22-26AWG GOLD
| Part | Cable Termination | Pitch [x] | Pitch [x] | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Contact Finish | Wire Type | Fastening Type | Contact Type | Mounting Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Color | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-103644-2 | IDC | 2.54 mm | 0.1 in | 13 | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | |
TE Connectivity AMP Connectors 1-103644-6 | IDC | 2.54 mm | 0.1 in | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | ||
TE Connectivity AMP Connectors 6-103644-9 | IDC | 2.54 mm | 0.1 in | 20 | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | |
TE Connectivity AMP Connectors 6-103644-5 | IDC | 2.54 mm | 0.1 in | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | 16 | |
TE Connectivity AMP Connectors 7-103644-0 | IDC | 2.54 mm | 0.1 in | 21 | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | |
TE Connectivity AMP Connectors 2-103644-0 | IDC | 2.54 mm | 0.1 in | 21 | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End | |
TE Connectivity AMP Connectors 6-103644-3 | IDC | 2.54 mm | 0.1 in | 14 | 22 AWG | 26 AWG | 1 | Gold | Discrete or Ribbon Cable | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 15 µin | 0.38 µm | Black | Closed End |
Description
General part information
103644 Series
13 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
