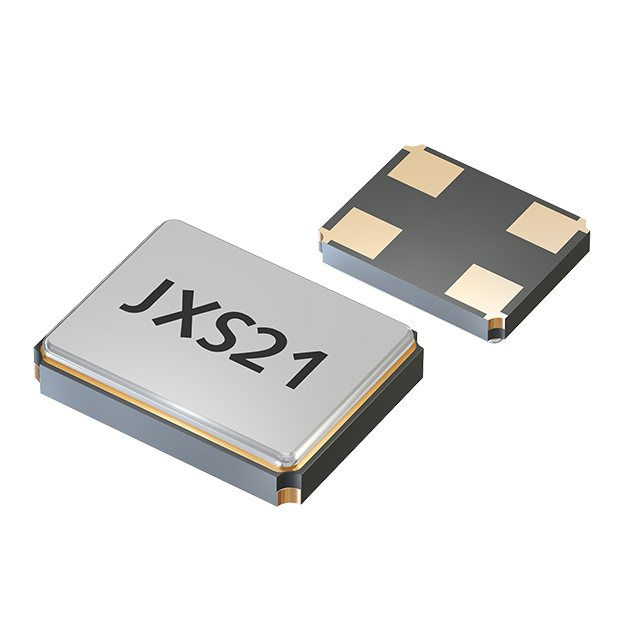

Q 24,0-JXS21-8-10/10-FU-WA-LF - JXS21-WA

Q 24,0-JXS21-8-10/10-FU-WA-LF

Active
Jauch Quartz

CRYSTAL 24.0000MHZ 8PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
Q 24,0-JXS21-8-10/10-FU-WA-LF - JXS21-WA

Q 24,0-JXS21-8-10/10-FU-WA-LF

Active
Jauch Quartz

CRYSTAL 24.0000MHZ 8PF SMD

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationQ 24,0-JXS21-8-10/10-FU-WA-LFJXS21 Series
ESR (Equivalent Series Resistance)80 Ohm50 - 100 Ohms
Frequency24 MHz16 - 52 MHz
Frequency Stability10 ppm10 - 15 ppm
Frequency Tolerance10 ppm10 ppm
Height - Seated (Max) [Max] [z]0.022 in0.022 in
Height - Seated (Max) [Max] [z]0.55 mm0.55 mm
Load Capacitance8 pF8 - 12 pF
Mounting TypeSurface MountSurface Mount
Operating ModeFundamentalFundamental
Operating Temperature [Max]70 °C70 - 85 °C
Operating Temperature [Min]-20 C-40 - -20 C
Package / Case4-SMD, No Lead4-SMD, No Lead
Size / Dimension [x]2 mm2 mm
Size / Dimension [x]0.079 in0.079 in
Size / Dimension [y]0.063 in0.063 in
Size / Dimension [y]1.6 mm1.6 mm
TypeMHz CrystalMHz Crystal

JXS21 Series

CRYSTAL 19.2000MHZ 10PF SMD

...
PartSize / Dimension [x]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]Package / CaseMounting TypeOperating Temperature [Min]Operating Temperature [Max]Frequency StabilityFrequencyTypeHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Frequency ToleranceLoad CapacitanceOperating ModeESR (Equivalent Series Resistance)
Jauch Quartz
Q 19,20-JXS21-10-10/10-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
19.2 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
10 pF
Fundamental
Jauch Quartz
Q 27,120-JXS21-12-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
27.12 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
12 pF
Fundamental
60 Ohms
Jauch Quartz
Q 32,0-JXS21-10-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
32 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
10 pF
Fundamental
50 Ohms
Jauch Quartz
Q 24,0-JXS21-9-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
24 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
9 pF
Fundamental
80 Ohm
Jauch Quartz
Q 27,120-JXS21-8-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
27.12 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
8 pF
Fundamental
60 Ohms
Jauch Quartz
Q 38,40-JXS21-12-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
38.4 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
12 pF
Fundamental
50 Ohms
Jauch Quartz
Q 52,0-JXS21-10-10/15-T1-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-40 °C
85 °C
15 ppm
52 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
10 pF
Fundamental
50 Ohms
Jauch Quartz
Q 24,0-JXS21-12-10/10-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-20 C
70 °C
10 ppm
24 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
12 pF
Fundamental
80 Ohm
Jauch Quartz
Q 37,4-JXS21-10-10/15-T1-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-40 °C
85 °C
15 ppm
37.4 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
10 pF
Fundamental
50 Ohms
Jauch Quartz
Q 48,0-JXS21-10-10/15-T1-FU-WA-LF
2 mm
0.063 in
1.6 mm
0.079 in
4-SMD, No Lead
Surface Mount
-40 °C
85 °C
15 ppm
48 MHz
MHz Crystal
0.022 in
0.55 mm
10 ppm
10 pF
Fundamental
50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 1000$ 0.50

Description

General part information

JXS21 Series

24 MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
