155216-2200-RB

Active

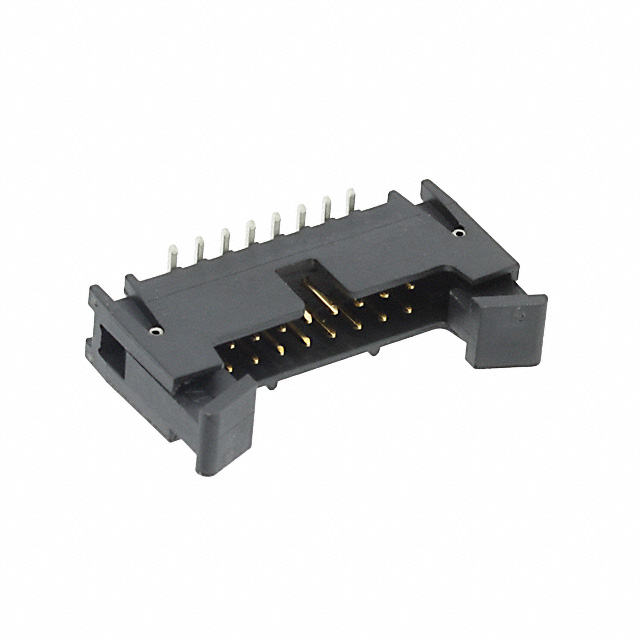

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155216-2200-RB

Active

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155216-2200-RB	155216 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Pick and Place, Keying Slot
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155216 Series

CONN HEADER SMD 16POS 2MM

Part	Contact Type	Termination	Fastening Type	Contact Shape	Material Flammability Rating	Mounting Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Number of Positions	Number of Rows	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Length - Post	Contact Length - Post
3M 155216-2200-RB-WE	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Surface Mount	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot, Pick and Place	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.425 in	10.8 mm	All
3M 155216-5302-RB	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Through Hole, Right Angle	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.247 in	6.28 mm	All	2.84 mm	0.112 in
3M 155216-6302-RB	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Through Hole	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.425 in	10.8 mm	All	2.84 mm	0.112 in
3M 155216-2200-RB	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Surface Mount	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.425 in	10.8 mm	All
3M 155216-5403-RB	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Through Hole, Right Angle	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.247 in	6.28 mm	All	3.94 mm	0.155 "
3M 155216-5203-RB	Male Pin	Solder	Latch Lock/Eject Hooks	Square	UL94 V-0	Through Hole, Right Angle	Shrouded - 4 Wall	200 µin	5.08 µm	Black	Tin	0.079 in	2 mm	0.15 in	3.81 mm	Copper Alloy	30 Áin	0.76 Ám	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	1.25 A	Gold	Header	16	2	Board to Cable/Wire	0.247 in	6.28 mm	All	3.94 mm	0.155 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

155216 Series

Connector Header Surface Mount 16 position 0.079" (2.00mm)
