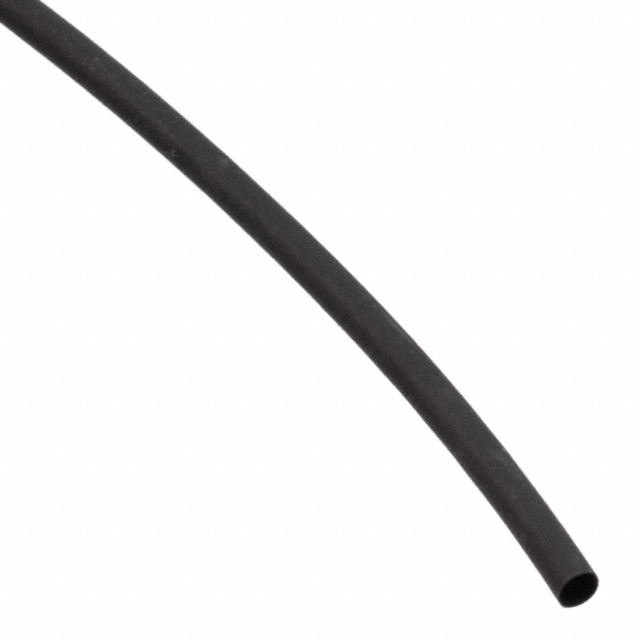

ZH4-1.5-0-SP-SM
ObsoleteTE Connectivity Raychem Cable Protection
HEATSHRINK TUBING 1=2000 METERS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZH4-1.5-0-SP-SM
ObsoleteTE Connectivity Raychem Cable Protection
HEATSHRINK TUBING 1=2000 METERS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZH4-1.5-0-SP-SM |
|---|---|
| Color | Black |
| Features | Flame Retardant |
| Inner Diameter - Recovered [diameter] | 0.76 mm |
| Inner Diameter - Recovered [diameter] | 0.03 in |
| Inner Diameter - Supplied [diameter] | 0.076 in |
| Inner Diameter - Supplied [diameter] | 1.93 mm |
| Length | 2000 m |
| Length | 6562 ft |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Material | Halogen Free, Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -30 ░C |
| Recovered Wall Thickness | 0.01 in |
| Recovered Wall Thickness | 0.25 mm |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 2 to 1 |
| Type | Tubing, Flexible |
ZH4 Series
| Part | Color | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Shrinkage Ratio | Operating Temperature [Max] | Operating Temperature [Min] | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Recovered Wall Thickness | Recovered Wall Thickness | Shrink Temperature | Length [x] | Length [x] | Type | Material | Features | Inner Diameter - Supplied | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Black | 0.092 in | 2.34 mm | 2 to 1 | 125 °C | -30 ░C | 0.039 in | 0.99 mm | 0.01 in | 0.25 mm | 70 °C | 1 m | 3.28 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | |||
TE Connectivity Raychem Cable Protection | Black | 0.413 in | 10.49 mm | 2 to 1 | 125 °C | -30 ░C | 0.197 " | 5 mm | 0.011 " | 0.28 mm | 70 °C | 1 m 500 m | 3.28 ft 1640.4 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | |||
TE Connectivity Raychem Cable Protection | Black | 0.217 in | 2 to 1 | 125 °C | -30 ░C | 0.01 in | 0.25 mm | 70 °C | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | 5.5 mm | |||||||
TE Connectivity Raychem Cable Protection | Black | 0.295 in | 7.49 mm | 2 to 1 | 125 °C | -30 ░C | 0.138 in | 3.51 mm | 0.011 " | 0.28 mm | 70 °C | 1 m 350 m | 3.28 ft 1148.3 ' | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | |||
TE Connectivity Raychem Cable Protection | Black | 0.375 in | 9.53 mm | 2 to 1 | 125 °C | -30 ░C | 0.178 in | 4.52 mm | 0.011 " | 0.28 mm | 70 °C | 1 m | 3.28 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | 164 ft | 50 m | |
TE Connectivity Raychem Cable Protection | Black | 0.335 in | 8.51 mm | 2 to 1 | 125 °C | -30 ░C | 0.157 in | 3.99 mm | 0.011 " | 0.28 mm | 70 °C | 1 m 500 m | 3.28 ft 1640.4 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | |||
TE Connectivity Raychem Cable Protection | Black | 0.13 in | 3.3 mm | 2 to 1 | 125 °C | -30 ░C | 0.06 in | 1.52 mm | 0.01 in | 0.25 mm | 70 °C | 1 m | 3.28 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | 4593.4 ft | 1400 m | |
TE Connectivity Raychem Cable Protection | Black | 0.076 in | 1.93 mm | 2 to 1 | 125 °C | -30 ░C | 0.03 in | 0.76 mm | 0.01 in | 0.25 mm | 70 °C | 1 m | 3.28 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | 6562 ft | 2000 m | |
TE Connectivity Raychem Cable Protection | Black | 0.11 in | 2.79 mm | 2 to 1 | 125 °C | -30 ░C | 0.049 in | 1.24 mm | 0.01 in | 0.25 mm | 70 °C | 1 m | 3.28 ft | Tubing Flexible | Halogen Free Polyolefin (PO) | Flame Retardant | 5249.3 ft | 1600 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZH4 Series
Heat Shrink Tubing, Flexible 0.076" (1.93mm) 2 to 1 Black 6562.0' (2000.0m)
