LFD21829MDKED859
ActiveMurata Electronics
DIPLEXER 829/2200MHZ 0805
LFD21829MDKED859
ActiveMurata Electronics
DIPLEXER 829/2200MHZ 0805
Description
General part information
LFD21829MDKED859

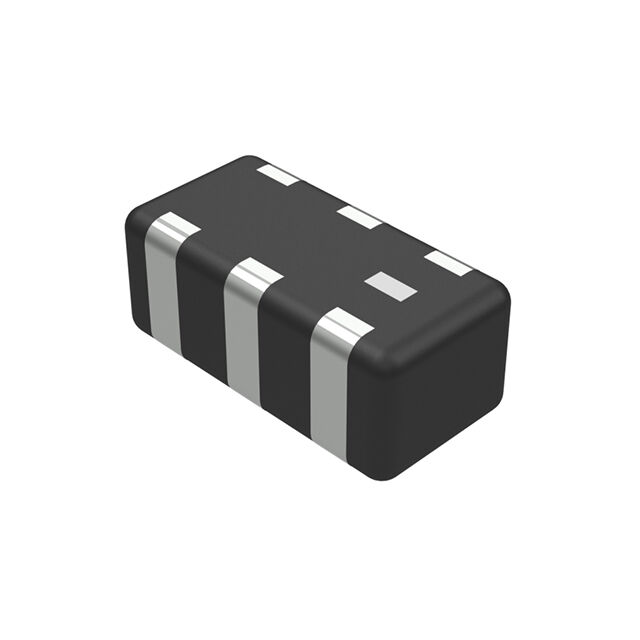

RF Diplexer 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz 0805 (2012 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LFD21829MDKED859 |
|---|---|
| Frequency Bands (High) Maximum | 2.69 GHz |
| Frequency Bands (High) Minimum | 1.71 GHz |
| Frequency Bands (Low) Maximum | 960 MHz |
| Frequency Bands (Low) Minimum | 698 MHz |
| High Band Attenuation (Min) | 23 dB |
| Low Band Attenuation (Min) | 20 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 6 PC Pad |
| Type | Diplexer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
