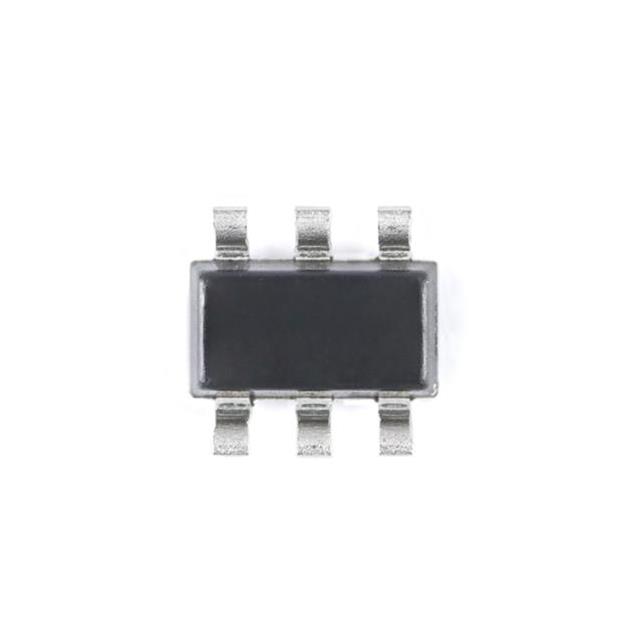

SN74LVC1G3157DCKR

Active

UMW

IC SW SPDT-NO/NCX1 7OHM SC70-6

Search across all available documentation for this part.

Active

UMW

IC SW SPDT-NO/NCX1 7OHM SC70-6

Technical Specifications

Parameters and characteristics for this part

Specification	SN74LVC1G3157DCKR

-3db Bandwidth	350 MHz
Channel Capacitance (CS(off), CD(off))	5.2 pF
Channel-to-Channel Matching (ΔRon)	150 mOhm
Charge Injection	7 pC
Current - Leakage (IS(off)) (Max)	100 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max) [Max]	7 Ohm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-VSSOP, SC-88, SOT-363
Supplier Device Package	SC70-6
Switch Circuit	SPDT - NO/NC
Switch Time (Ton, Toff) (Max) [custom]	3.5 ns
Switch Time (Ton, Toff) (Max) [custom]	5.2 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

IC SW SPDT-NO/NCX1 7OHM SC70-6

Part	-3db Bandwidth	Supplier Device Package	Mounting Type	Switch Circuit	Channel-to-Channel Matching (ΔRon)	Charge Injection	Package / Case	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	On-State Resistance (Max) [Max]	Number of Circuits	Multiplexer/Demultiplexer Circuit	Channel Capacitance (CS(off), CD(off))	Current - Leakage (IS(off)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]
UMW SN74LVC1G3157DCKR	350 MHz	SC70-6	Surface Mount	SPDT - NO/NC	150 mOhm	7 pC	6-VSSOP, SC-88, SOT-363	3.5 ns	5.2 ns	7 Ohm	1	2:1	5.2 pF	100 nA	125 °C	-55 °C	1.65 V	5.5 V
