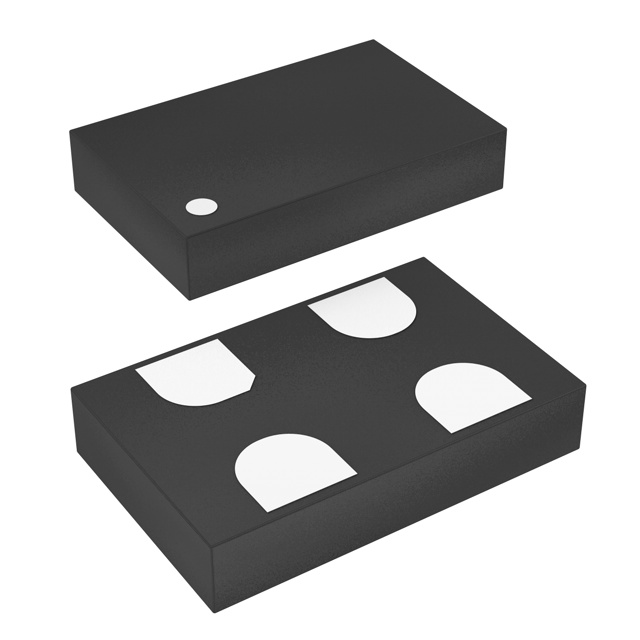

SIT5001AC-3B-33N0-40.000000X

Active

SiTime

MEMS OSC XO 40.0000MHZ H/LV-CMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT5001AC-3B-33N0-40.000000X

Active

SiTime

MEMS OSC XO 40.0000MHZ H/LV-CMOS

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT5001AC-3B-33N0-40.000000X	SIT5001 Series

Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max)	-	30 mA
Current - Supply (Disable) (Max) [Max]	10 ÁA	10 - 70 µA
Current - Supply (Max) [Max]	32 mA	31 - 33 mA
Frequency	40 MHz	1.8412 - 80 MHz
Frequency Stability	1.5 ppm	1.5 - 5 ppm
Frequency Stability	-	Ý5ppm
Function	-	Enable/Disable, Standby (Power Down)
Height - Seated (Max)	-	0.039 "
Height - Seated (Max)	-	1 mm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Output	HCMOS, LVCMOS	LVCMOS, HCMOS
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	0.197 in	0.106 - 0.276 in
Size / Dimension [x]	5 mm	2.7 - 7 mm
Size / Dimension [y]	0.126 "	0.094 - 0.197 "
Size / Dimension [y]	3.2 mm	2.4 - 5 mm
Supplier Device Package	-	4-SMD (2.7x2.4), 4-SMD (3.2x2.5)
Type	XO (Standard)	VCTCXO, TCXO, XO (Standard)
Voltage - Supply	3.3 V	1.8 - 3.3 V

SIT5001 Series

MEMS OSC VCTCXO SMD

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Supply	Current - Supply (Max) [Max]	Base Resonator	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Package / Case	Mounting Type	Output	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Disable) (Max)	Function	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Disable) (Max) [Max]
SiTime SIT5001AI-3E-33VB-40.000000T	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	33 mA	MEMS	40 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	VCTCXO	85 °C	-40 °C
SiTime SIT5001AICGE-18E0-40.000000T	0.106 in	0.094 in	2.4 mm	2.7 mm	1.8 V	31 mA	MEMS	40 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C	30 mA	Enable/Disable
SiTime SIT5001AI-3E-33E0-3.072000T	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	33 mA	MEMS	3.072 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C		Enable/Disable
SiTime SIT5001AC-8E-25E0-10.000000Y	0.276 "	0.197 "	5 mm	7 mm	2.5 V	33 mA	MEMS	10 MHz			5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	70 °C	-20 C		Enable/Disable	0.039 "	1 mm
SiTime SIT5001AI-8E-33N0-70.656000Y	0.276 "	0.197 "	5 mm	7 mm	3.3 V	33 mA	MEMS	70.656 MHz			5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C			0.039 "	1 mm
SiTime SIT5001AI-8E-33E0-8.000000Y	0.276 "	0.197 "	5 mm	7 mm	3.3 V	33 mA	MEMS	8 MHz			5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C		Enable/Disable	0.039 "	1 mm
SiTime SIT5001AI-2E-33N0-25.998450Y	0.126 in	0.098 in	2.5 mm	3.2 mm	3.3 V	33 mA	MEMS	25.99845 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C
SiTime SIT5001AI-2E-33N0-30.000000Y	0.126 in	0.098 in	2.5 mm	3.2 mm	3.3 V	33 mA	MEMS	30 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C
SiTime SIT5001AI-GE-33S0-4.096000T	0.106 in	0.094 in	2.4 mm	2.7 mm	3.3 V	33 mA	MEMS	4.096 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	TCXO	85 °C	-40 °C		Standby (Power Down)			70 µA
SiTime SIT5001AI-2E-33VQ-38.400000Y	0.126 in	0.098 in	2.5 mm	3.2 mm	3.3 V	33 mA	MEMS	38.4 MHz	0.8 mm	0.031 "	5 ppm	4-SMD, No Lead	Surface Mount	LVCMOS	VCTCXO	85 °C	-40 °C
