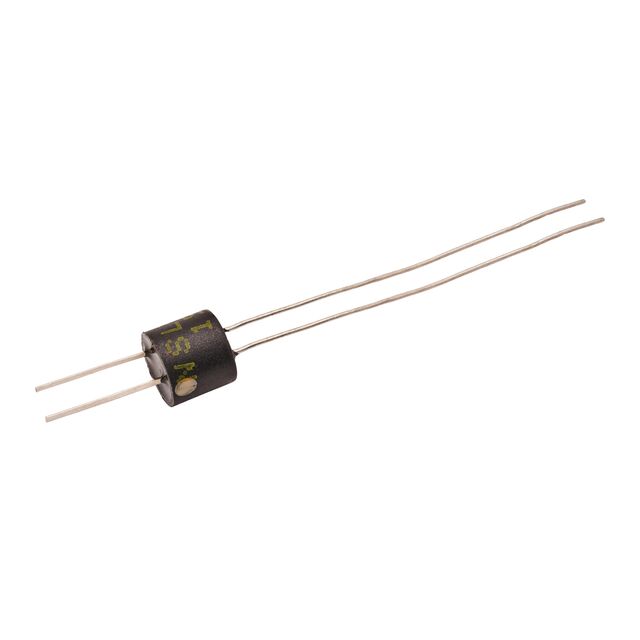

NSL-32SR2

Active

Advanced Photonix

OPTOISO PHOTOCELL OPTOCOUPLER

Search across all available documentation for this part.

Active

Advanced Photonix

OPTOISO PHOTOCELL OPTOCOUPLER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NSL-32SR2	NSL-32 Series

Current - DC Forward (If) (Max) [Max]	25 mA	25 - 40 mA
Input Type	-	DC
Mounting Type	Free Hanging	Surface Mount, Free Hanging, Through Hole
Number of Channels	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	75 ░C
Package / Case	Module	5-SMD, Flat Leads, Module
Rise / Fall Time (Typ)	-	-
Rise / Fall Time (Typ)	-	3 ms
Rise / Fall Time (Typ) [custom]	80 ms	80 ms
Rise / Fall Time (Typ) [custom]	5 ms	5 ms
Type	Photocell Optocoupler	Photocell Optocoupler
Voltage - Forward (Vf) (Typ)	-	1.2 V
Voltage - Isolation	-	2500 Vrms
Voltage - Supply [Max]	60 V	60 V

PHOTOCELL (CDS) OUTPUT OPTOCOUPL

Part	Voltage - Forward (Vf) (Typ)	Type	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Voltage - Isolation	Input Type	Number of Channels	Current - DC Forward (If) (Max) [Max]	Voltage - Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Advanced Photonix NSL-37V5C3/2	1.2 V	Photocell Optocoupler	-	3 ms	-40 °C	75 ░C	5-SMD, Flat Leads	Surface Mount	2500 Vrms	DC	1	40 mA
Advanced Photonix NSL-32SR2		Photocell Optocoupler					Module	Free Hanging			1	25 mA	60 V	80 ms	5 ms
Advanced Photonix NSL-32H-103		Photocell Optocoupler					Module	Through Hole			1	40 mA	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Photocell Optocoupler 1 Channel
