PEWCT1060
ActivePasternack

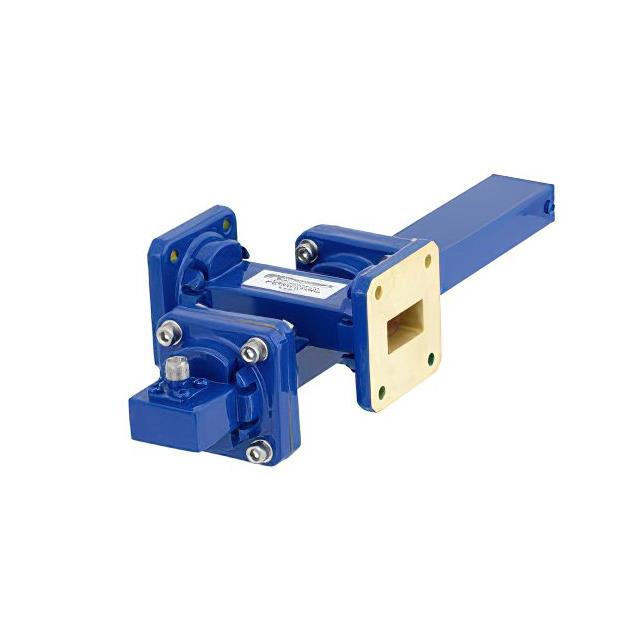

WR-75 WAVEGUIDE 20 DB CROSSGUIDE
PEWCT1060
ActivePasternack
WR-75 WAVEGUIDE 20 DB CROSSGUIDE
Description
General part information
PEWCT1060
WR-75 WAVEGUIDE 20 DB CROSSGUIDE
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWCT1060 |
|---|---|
| Applications | Radar |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency (Max) | 15 GHz |
| Frequency (Min) | 10 GHz |
| Insertion Loss | 0.1 dB |
| Isolation | 25 dB |
| Package / Case | Module |
| Power - Max | 2.5 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
