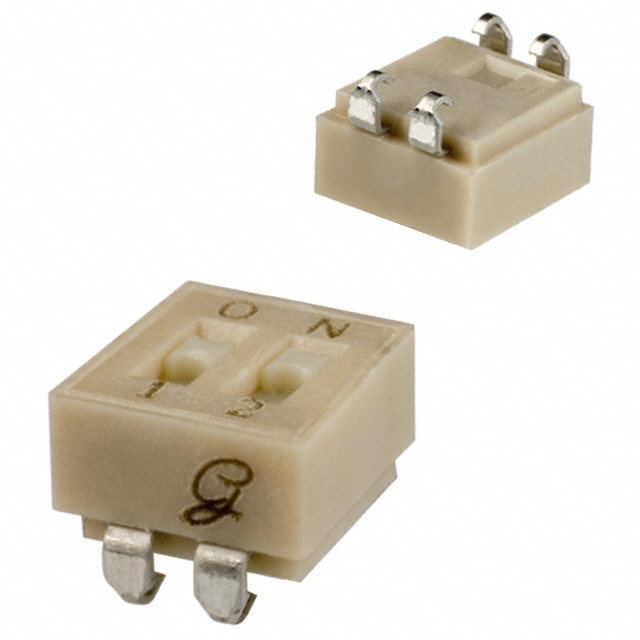

90HBJ02PRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90HBJ02PRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 90HBJ02PRT | 90HBJ02 Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed |
| Actuator Type | Slide (Standard) | Slide (Standard) |
| Body Material | Thermoplastic | Thermoplastic |
| Circuit | SPST | SPST |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 2000 Steps | 2000 Steps |
| Features | Tape Seal | Tape Seal |
| Length | 0.27 in | 0.27 in |
| Length | 6.86 mm | 6.86 mm |
| Mechanical Life | 2000 Cycles | 2000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | J Lead | J Lead |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | True | True |
90HBJ02 Series
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Length | Length | Actuator Level | Number of Positions | Circuit | Features | Termination Style | Washable | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Mechanical Life | Contact Material | Pitch [x] | Pitch | Pitch [x] | Body Material | Actuator Type | Contact Finish | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 90HBJ02PRT | 2000 Steps | 0.27 in | 6.86 mm | Flush, Recessed | 2 | SPST | Tape Seal | J Lead | 85 °C | -40 °C | 25 mA | Surface Mount | 2000 Cycles | Copper Alloy | 0.1 in | Full | 2.54 mm | Thermoplastic | Slide (Standard) | Gold | 24 VDC | |
Grayhill Inc. 90HBJ02PT | 2000 Steps | 0.27 in | 6.86 mm | Flush, Recessed | 2 | SPST | Tape Seal | J Lead | 85 °C | -40 °C | 25 mA | Surface Mount | 2000 Cycles | Copper Alloy | 0.1 in | Full | 2.54 mm | Thermoplastic | Slide (Standard) | Gold | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 750 | $ 3.66 | |
Description
General part information
90HBJ02 Series
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
