RCR875DNP-681K
ActiveSumida America Components Inc.
FIXED IND 680UH 280MA 2.07OHM TH
RCR875DNP-681K
ActiveSumida America Components Inc.
FIXED IND 680UH 280MA 2.07OHM TH
Description
General part information
RCR875DNP-681K

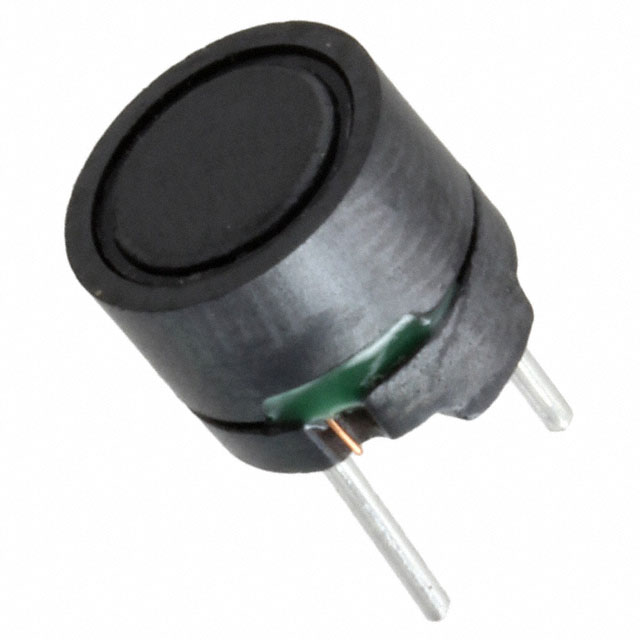

680 µH Shielded Inductor 280 mA 2.07Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | RCR875DNP-681K |
|---|---|
| Current Rating | 0.28 A |
| DC Resistance (DCR) (Max) | 2.07 Ohm |
| Height - Seated (Max) | 0.295 in |
| Inductance | 680 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.307 in |
| Tolerance | 10 % |
