Description
General part information

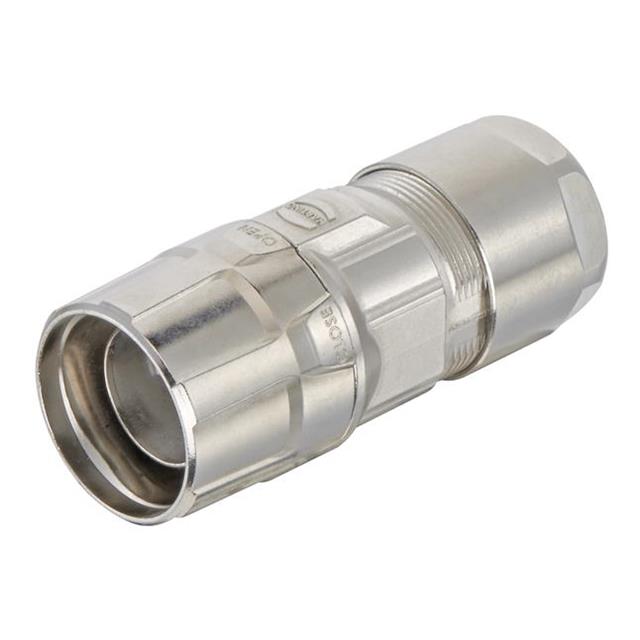

09151000492
Position Circular Connector Insert Shell Free Hanging (In-Line) Backshell, Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | 09151000492 |
|---|---|
| Connector Type | Insert Shell |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69, IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included, Insert Not Included |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc Alloy |
| Shell Size - Insert | M23 |
| Shielding | Shielded |
| Type | For Female Sockets or Male Pins |
