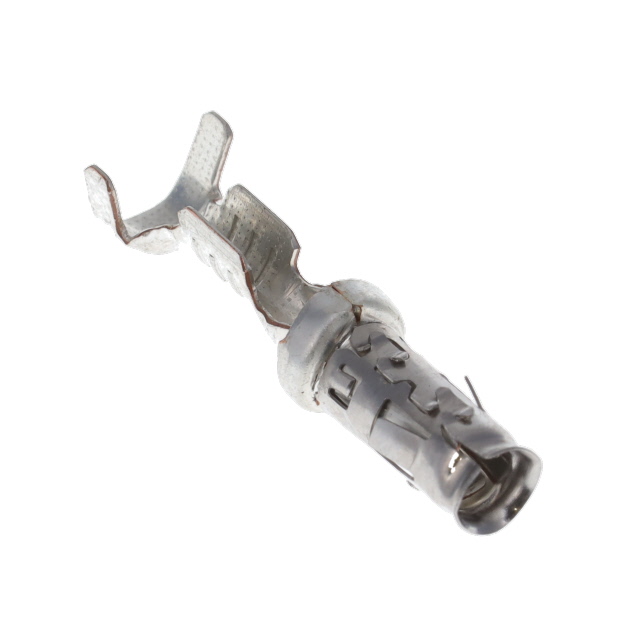

031-8717-149 - 031-8717-149

031-8717-149

Active

ITT Cannon, LLC

CONTACT SOCKET 16-20AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-8717-149 - 031-8717-149

031-8717-149

Active

ITT Cannon, LLC

CONTACT SOCKET 16-20AWG CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.60
		10	$ 0.50
		25	$ 0.48
		50	$ 0.47
		100	$ 0.45
		300	$ 0.41
		500	$ 0.37
		1000	$ 0.36

Description

General part information

031-8 Series

Socket Contact 16-20 AWG Size Crimp Tin

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-8717-149	031-8 Series

	-	-
Contact Finish	Tin	Gold, Silver, Tin
Contact Finish Thickness	-	19.7 - 196.9 µin
Contact Finish Thickness	-	0.5 - 5 µm
Contact Material	Copper Alloy	Copper Alloy, Brass
Contact Size	-	0 - 20
Contact Size	-	16S
Contact Termination	Crimp	Crimp
Contact Type	Socket	Socket, Pin
Features	-	Insulation Support
Pin or Socket	-	Socket, Pin
Termination Finish	-	Brass, Copper Alloy, Tin
Type	Machined	Signal, Machined, Power, Machined, Stamped, Power, Stamped
Wire Gauge	-	14 - 20 AWG
Wire Gauge	-	12 - 17.5 AWG
Wire Gauge or Range - AWG	-	0 - 10 AWG
Wire Gauge or Range - AWG [Max]	20 AWG	14 - 26 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	12 - 22 AWG
Wire Gauge or Range - mm²	-	4 - 50 mm²
Wire Gauge or Range - mm² [Max]	1.5 mm²	0.38 - 4 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²	0.14 - 2.5 mm²

031-8 Series

CONTACT SOCKET 20-22AWG CRIMP

Part	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size	Contact Termination	Contact Material	Contact Type	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Finish	Wire Gauge or Range - mm²	Contact Size	Wire Gauge or Range - AWG	Features	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]
ITT Cannon, LLC 031-8639-115	0.6 mm²	0.3 mm²	16	Crimp	Copper Alloy	Socket	Gold	Machined, Signal	19.7 µin	0.5 µm	20 AWG	22 AWG
ITT Cannon, LLC 031-8556-140			16	Crimp	Copper Alloy	Socket	Silver	Machined, Signal	196.9 µin	5 µm	14 AWG	16 AWG
ITT Cannon, LLC 031-8531-013			0 (3)	Crimp	Brass	Socket	Silver	Power, Machined					Brass	50 mm²
ITT Cannon, LLC 031-8704-502			16	Crimp	Copper Alloy	Socket	Gold	Machined			16 AWG	20 AWG
ITT Cannon, LLC 031-8688-115	0.6 mm²	0.3 mm²		Crimp	Copper Alloy	Socket	Gold	Machined, Signal	19.7 µin	0.5 µm	20 AWG	22 AWG			16S
ITT Cannon, LLC 031-8559-000			8	Crimp	Copper Alloy	Socket	Silver	Machined, Signal	196.9 µin	5 µm				10 mm²
ITT Cannon, LLC 031-8717-150	2.5 mm²	1.5 mm²		Crimp	Copper Alloy	Socket	Gold	Signal, Stamped			14 AWG	16 AWG
ITT Cannon, LLC 031-8704-509			20	Crimp	Copper Alloy	Socket	Gold	Machined			20 AWG	24 AWG
ITT Cannon, LLC 031-8704-508			20	Crimp	Copper Alloy	Socket	Gold	Machined			20 AWG	24 AWG
ITT Cannon, LLC 031-8556-120			16	Crimp	Copper Alloy	Socket	Silver	Machined, Signal	196.9 µin	5 µm	12 AWG	14 AWG
