1684994
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZD7
1684994
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZD7
Description
General part information
1684994

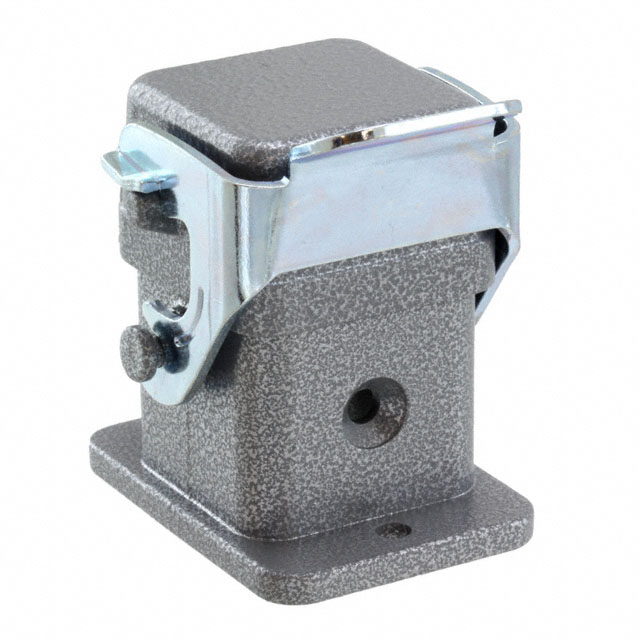

Base - Panel Mount Connector Bottom Entry D7 IP54 - Dust Protected, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1684994 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Zinc |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | D7 |
| Size / Dimension Height | 0.945 in |
| Size / Dimension Length | 1.102 in |
| Size / Dimension Width | 1.496 in |
| Style | Bottom Entry |
