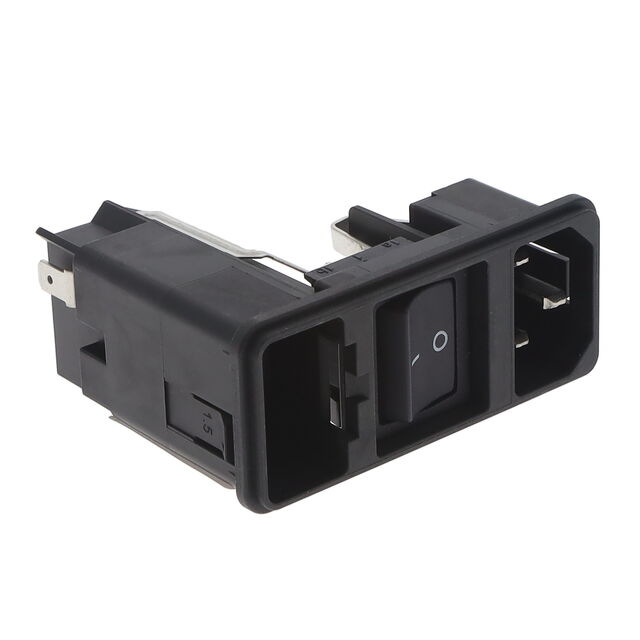

KD13.1101.105
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KD13.1101.105
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KD13.1101.105 | KD13.1101 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 66.5 mm | 66.5 mm |
| Panel Thickness | - | 2 mm |
| Panel Thickness | - | 0.079 in |
| Panel Thickness [custom] | 0.059 in | 0.059 in |
| Panel Thickness [custom] | 1.5 mm | 1.5 mm |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KD13.1101 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Material Flammability Rating | Connector Type | Accomodates a Fuse | Mounting Type | Filter Type | Approval Agency | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Ingress Protection | Fuse Holder, Drawer | Switch Features | Connector Style | Termination | Termination | Panel Thickness [custom] | Panel Thickness [custom] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KD13.1101.105 | UL94 V-0 | Receptacle, Male Blades - Module | Panel Mount, Snap-In | Unfiltered - Commercial | CCC, CSA, ENEC, UL | 10 A | 250 VAC | IP40 | Drawer Sold Separate | Switch On-Off | IEC 320-C14 | 0.189 ", 4.8 mm | Quick Connect | 0.059 in | 1.5 mm | 27.5 mm | 66.5 mm | |||
SCHURTER Inc. KD13.1101.107 | UL94 V-0 | Receptacle, Male Blades - Module | Panel Mount, Snap-In | Unfiltered - Commercial | CCC, CSA, ENEC, UL | 10 A | 250 VAC | IP40 | Drawer Sold Separate | Switch On-Off | IEC 320-C14 | 0.189 ", 4.8 mm | Quick Connect | 27.5 mm | 66.5 mm | 2 mm | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.55 | |
| 50 | $ 20.07 | |||
| 100 | $ 16.98 | |||
Description
General part information
KD13.1101 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
