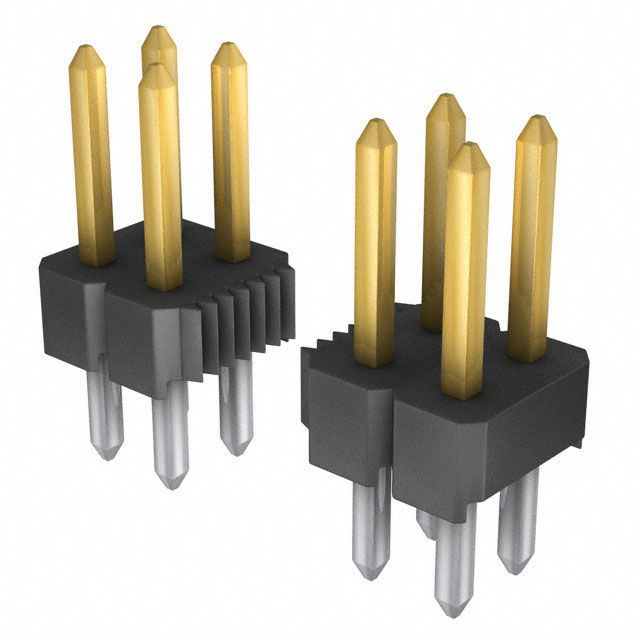

961260-6404-AR

Active

3M (TC)

CONN HEADER VERT 60POS 2.54MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER VERT 60POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	961260-6404-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	0.217 in
Contact Length - Mating	5.5 mm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	11.3 mm
Overall Contact Length	0.445 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Termination	Shrouding	Material Flammability Rating	Contact Shape	Contact Finish - Post	Current Rating (Amps)	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating
3M (TC) 961260-6804-AR	Thermoplastic	0.1 in	2.54 mm	-25 °C	105 ░C	60	Gold	0.13 in	3.3 mm	2	Header	2.54 mm	0.1 in	All	Solder	Unshrouded	UL94 V-0	Square	Tin	2 A	Push-Pull	Copper Alloy	Flash	0.098 in	2.5 mm	Male Pin	6.8 mm	0.268 in	Black	Through Hole	1 çm	39.4 çin	0.496 in	12.6 mm
3M (TC) 961260-6404-AR	Thermoplastic	0.1 in	2.54 mm	-25 °C	105 ░C	60	Gold	0.13 in	3.3 mm	2	Header	2.54 mm	0.1 in	All	Solder	Unshrouded	UL94 V-0	Square	Tin	2 A	Push-Pull	Copper Alloy	Flash	0.098 in	2.5 mm	Male Pin	0.217 in		Black	Through Hole	1 çm	39.4 çin	0.445 "	11.3 mm	5.5 mm
3M (TC) 961260-6300-AR-TP	Thermoplastic	0.1 in	2.54 mm	-25 °C	105 ░C	60	Gold			2	Header	2.54 mm	0.1 in	All	Solder	Unshrouded	UL94 V-0	Square	Tin	2 A	Push-Pull	Copper Alloy	Flash	0.098 in	2.5 mm	Male Pin	5.33 mm	0.21 in	Black	Surface Mount	1 çm	39.4 çin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 60 position 0.100" (2.54mm)
