EZ-1700-716MC

Active

Amphenol Times Microwave Systems

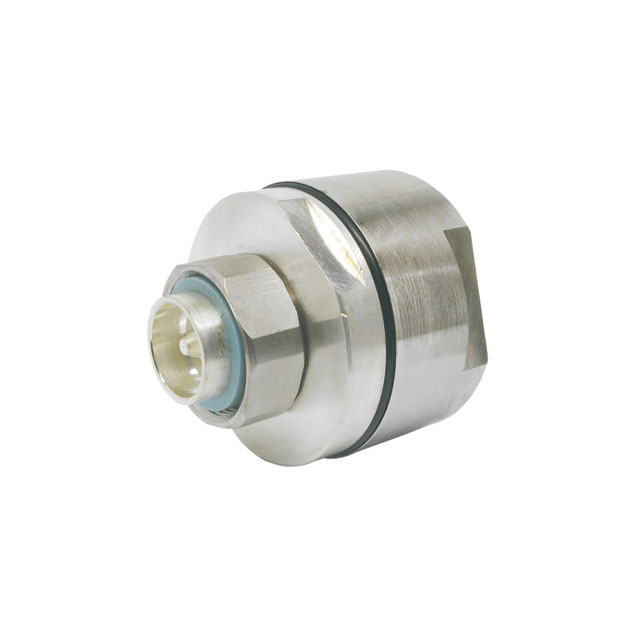

7/16 DIN MALE CLAMP CONNECTOR, P

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

7/16 DIN MALE CLAMP CONNECTOR, P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 369.07

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Press-Fit

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EZ-1700-716MC	EZ-1700 Series

Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Cable Group	LMR-1700	LMR-1700
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold, Tin
Connector Style	7/16 DIN	7/16 DIN, N Type
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Press-Fit	Press-Fit
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz	3 - 3.6 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.1 dB	0.1 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 155 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Shield Termination	Clamp	Clamp

7/16 DIN FEMALE CLAMP CONNECTOR,

Part	Number of Ports	Insertion Loss	Impedance	Center Contact Material	Body Finish	Contact Termination	Dielectric Material	Frequency - Max [Max]	Connector Type	Mounting Type	Center Contact Plating	Mating Cycles	Housing Color	Connector Style	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Cable Group
Amphenol Times Microwave Systems EZ-1700-716FC	1	0.1 dB	50 Ohms	Beryllium Copper	White Bronze	Press-Fit	Polytetrafluoroethylene (PTFE)	3 GHz	Female Socket, Jack	Free Hanging (In-Line)	Gold	500	Silver	7/16 DIN	Clamp	85 °C	-40 °C	Brass	LMR-1700
Amphenol Times Microwave Systems EZ-1700-NMC	1	0.1 dB	50 Ohms	Beryllium Copper	White Bronze	Press-Fit	Polytetrafluoroethylene (PTFE)	3.6 GHz	Male Pin, Plug	Free Hanging (In-Line)	Tin		Silver	N Type	Clamp	155 °C	-55 °C	Brass	LMR-1700
Amphenol Times Microwave Systems EZ-1700-NFC	1	0.1 dB	50 Ohms	Beryllium Copper	White Bronze	Press-Fit	Polytetrafluoroethylene (PTFE)	3 GHz	Female Socket, Jack	Free Hanging (In-Line)	Tin	500	Silver	N Type	Clamp	155 °C	-55 °C	Brass	LMR-1700
Amphenol Times Microwave Systems EZ-1700-716MC	1	0.1 dB	50 Ohms	Brass	White Bronze	Press-Fit	Polytetrafluoroethylene (PTFE)	3 GHz	Male Pin, Plug	Free Hanging (In-Line)	Gold	500	Silver	7/16 DIN	Clamp	85 °C	-40 °C	Brass	LMR-1700
