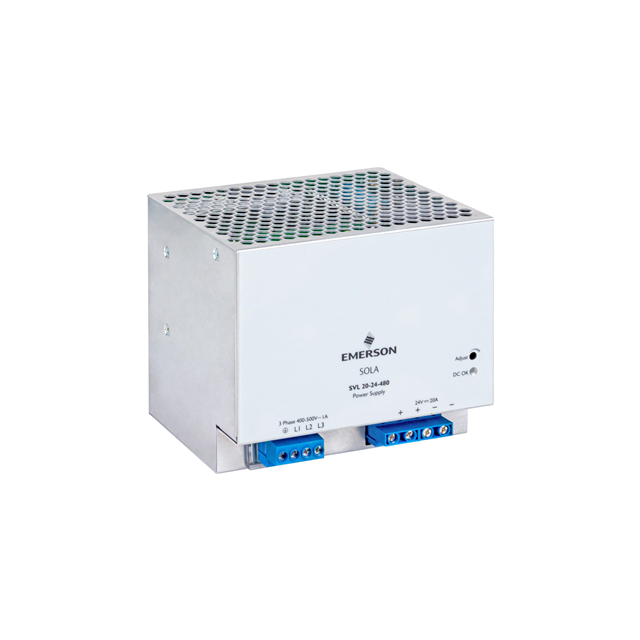

SVL2024480
ActiveSolaHD
AC/DC DIN RAIL POWER SUPPLY, 1 OUTPUT, 480 W, 24 VDC, 20 A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SVL2024480
ActiveSolaHD
AC/DC DIN RAIL POWER SUPPLY, 1 OUTPUT, 480 W, 24 VDC, 20 A
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SVL2024480 |
|---|---|
| AC Voltage - Input | 575 VAC |
| AC Voltage - Input | 320 VAC, 360 VAC |
| Applications | ITE (Commercial), Industrial, Hazardous Locations |
| Approval Agency | cCSAus, CE, cULus, cURus, UL |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 91 % |
| Features | Adjustable Output, PFC |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 480 W |
| Size / Dimension [x] | 4.62 " |
| Size / Dimension [x] | 117.3 mm |
| Size / Dimension [y] | 5.51 " |
| Size / Dimension [y] | 140 mm |
| Size / Dimension [z] | 4.76 " |
| Size / Dimension [z] | 121 mm |
| Standard Number | 60950-1, 62368-1, UL 508 |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SVL2024480
AC/DC DIN RAIL POWER SUPPLY, 1 OUTPUT, 480 W, 24 VDC, 20 A
