PHG.0K.304.CLLC40
ActiveLEMO

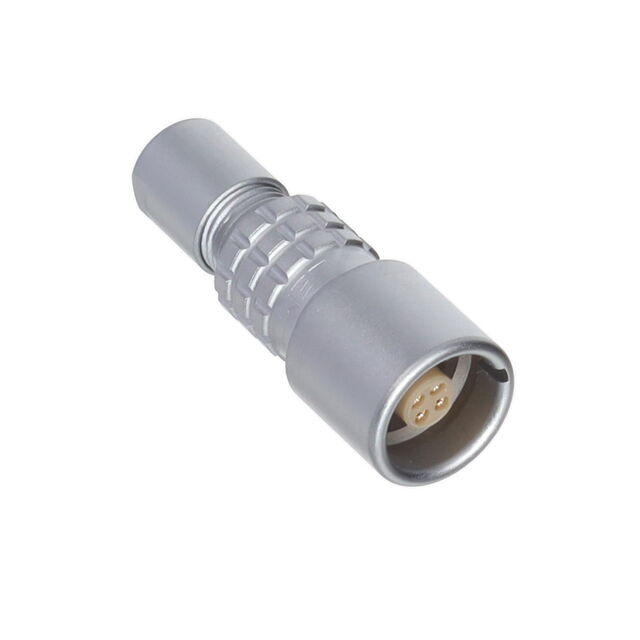

CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHG.0K.304.CLLC40
ActiveLEMO
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PHG.0K.304.CLLC40 | PHG.0K Series |
|---|---|---|
| - | - | |
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.098 - 0.138 in |
| Cable Opening | - | 2.5 - 3 mm |
| Cable Opening | - | 0.083 - 0.122 in |
| Cable Opening | - | 2.1 - 3.1 mm |
| Cable Opening | - | 0.059 - 0.197 in |
| Cable Opening | - | 0.051 - 0.181 in |
| Cable Opening | - | 2 - 5 mm |
| Cable Opening | - | 1.3 - 4.6 mm |
| Cable Opening | - | 3.5 mm |
| Cable Opening | - | 1.5 mm |
| Cable Opening [custom] | 0.142 in, 0.157 in | 0.142 - 0.157 in |
| Cable Opening [custom] | 4 mm | 4 mm |
| Cable Opening [custom] | 3.6 mm | 3.6 mm |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 2.5 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 6 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 302 - 306 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp |
PHG.0K Series
Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET
| Part | Mounting Type | Material Flammability Rating | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Shell Material | Contact Finish - Mating | Contact Material | Current Rating (Amps) | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination | Backshell Material, Plating | Connector Type | Orientation | Color | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Shielding | Shell Finish | Ingress Protection | Insert Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [custom] | Number of Positions | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | UL94 V-0 | 0.118 in | 3 mm | 0.102 in | 2.6 mm | Brass | Gold | Bronze | 8 A | Metal | -55 °C | 200 °C | Backshell | Crimp | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 303 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | |||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 8 A | Metal | -55 °C | 200 °C | Backshell | Crimp | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 303 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.079 in | 0.063 in | 2 mm | 1.6 mm | |||||||||||
Free Hanging (In-Line) | UL94 V-0 | 0.138 in | 0.122 in | 3.1 mm | Brass | Gold | Bronze | 6.5 A | Metal | -55 °C | 200 °C | Backshell | Crimp | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 305 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 3.5 mm | |||||||||||
Free Hanging (In-Line) | UL94 V-0 | 0.138 in | 0.122 in | 3.1 mm | Brass | Gold | Bronze | 10 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 302 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 3.5 mm | 2 | |||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 7 A | Metal | -55 °C | 200 °C | Backshell | Crimp | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 304 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.177 in | 0.161 in | 4.5 mm | 4.1 mm | 4 | ||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 8 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 303 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.142 in, 0.157 in | 4 mm | 3.6 mm | |||||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 2.5 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 306 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.177 in | 0.161 in | 4.5 mm | 4.1 mm | 6 | |||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 8 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 303 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.177 in | 0.161 in | 4.5 mm | 4.1 mm | ||||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 7 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 304 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 4 | 0.142 in, 0.157 in | 4 mm | 3.6 mm | ||||||||||||
Free Hanging (In-Line) | UL94 V-0 | Brass | Gold | Bronze | 2.5 A | Metal | -55 °C | 200 °C | Backshell | Brass, Chrome | Receptacle, Female Sockets | G | Silver | 306 | 59 Áin | 1.5 Ám | Push-Pull | Shielded | Chrome | IP66/IP68 | Polyetheretherketone (PEEK) | 0.177 in | 0.161 in | 4.5 mm | 4.1 mm | 6 |
