2-1437021-6

Active

TE Connectivity AMP Connectors

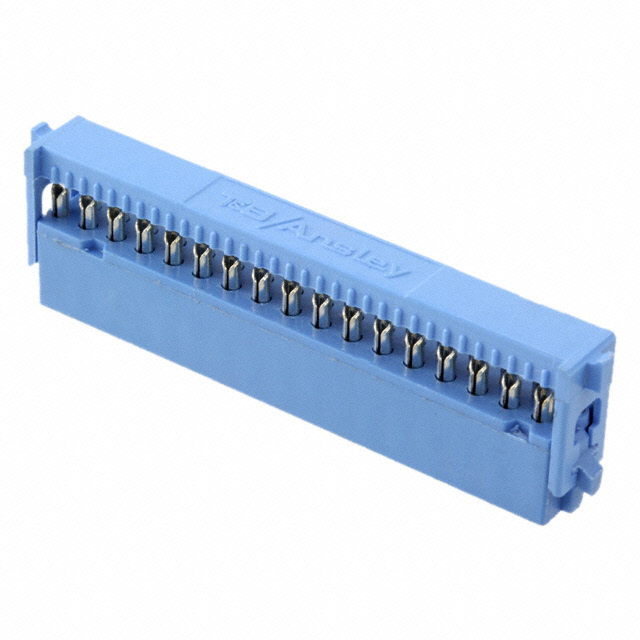

CONN RCPT 34POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 34POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1437021-6	1437021 Series

Accessory Type	-	Strain Relief
Cable Termination	IDC	IDC
Color	Blue	Blue
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Features	-	Polarizing Key, Strain Relief
For Use With/Related Products	-	AMP-LATCH Series
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	34	26 - 50
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Wire Gauge	28 AWG	28 AWG
Wire Gauge	-	30 AWG
Wire Gauge	-	27.5 AWG
Wire Type	Discrete or Ribbon Cable	Ribbon Cable, Discrete or Ribbon Cable

CONN STRAIN RELIEF 26POS BLUE

Part	For Use With/Related Products	Accessory Type	Number of Positions	Wire Type	Number of Rows	Row Spacing [x]	Row Spacing	Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Cable Termination	Features	Connector Type	Contact Type	Wire Gauge	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity AMP Connectors 1-1437021-2	AMP-LATCH Series	Strain Relief	26
TE Connectivity AMP Connectors 1-1437021-0	AMP-LATCH Series	Strain Relief	26
TE Connectivity AMP Connectors 3-1437021-4			34	Ribbon Cable	2	0.1 in	2.54 mm	Blue	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold	2.54 mm	0.1 in	IDC	Polarizing Key, Strain Relief	Receptacle	Female Socket
TE Connectivity AMP Connectors 5-1437021-5	AMP-LATCH Series	Strain Relief	40
TE Connectivity AMP Connectors 7-1437021-9	AMP-LATCH Series	Strain Relief	50
TE Connectivity AMP Connectors 2-1437021-6			34	Discrete or Ribbon Cable	2	0.1 in	2.54 mm	Blue	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold	2.54 mm	0.1 in	IDC		Receptacle	Female Socket	28 AWG
TE Connectivity AMP Connectors 1437021-5			26	Discrete or Ribbon Cable	2	0.1 in	2.54 mm	Blue	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold	2.54 mm	0.1 in	IDC		Receptacle	Female Socket		30 AWG	27.5 AWG
TE Connectivity AMP Connectors 3-1437021-2	AMP-LATCH Series	Strain Relief	34

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

34 Position Rectangular Receptacle Connector IDC Gold 28 AWG
